The D3673 high frequency compression driver features an integral dome and suspension made of special polyester, providing exceptional high output with low distortion and frequency response with high linearity. The voice coil assembly is easily field replaceable without soldering. It is designed for a wide variety of applications in high quality, high power professional reinforcement systems and stage monitors where low crossover frequency is needed.
OBERTONFerrite

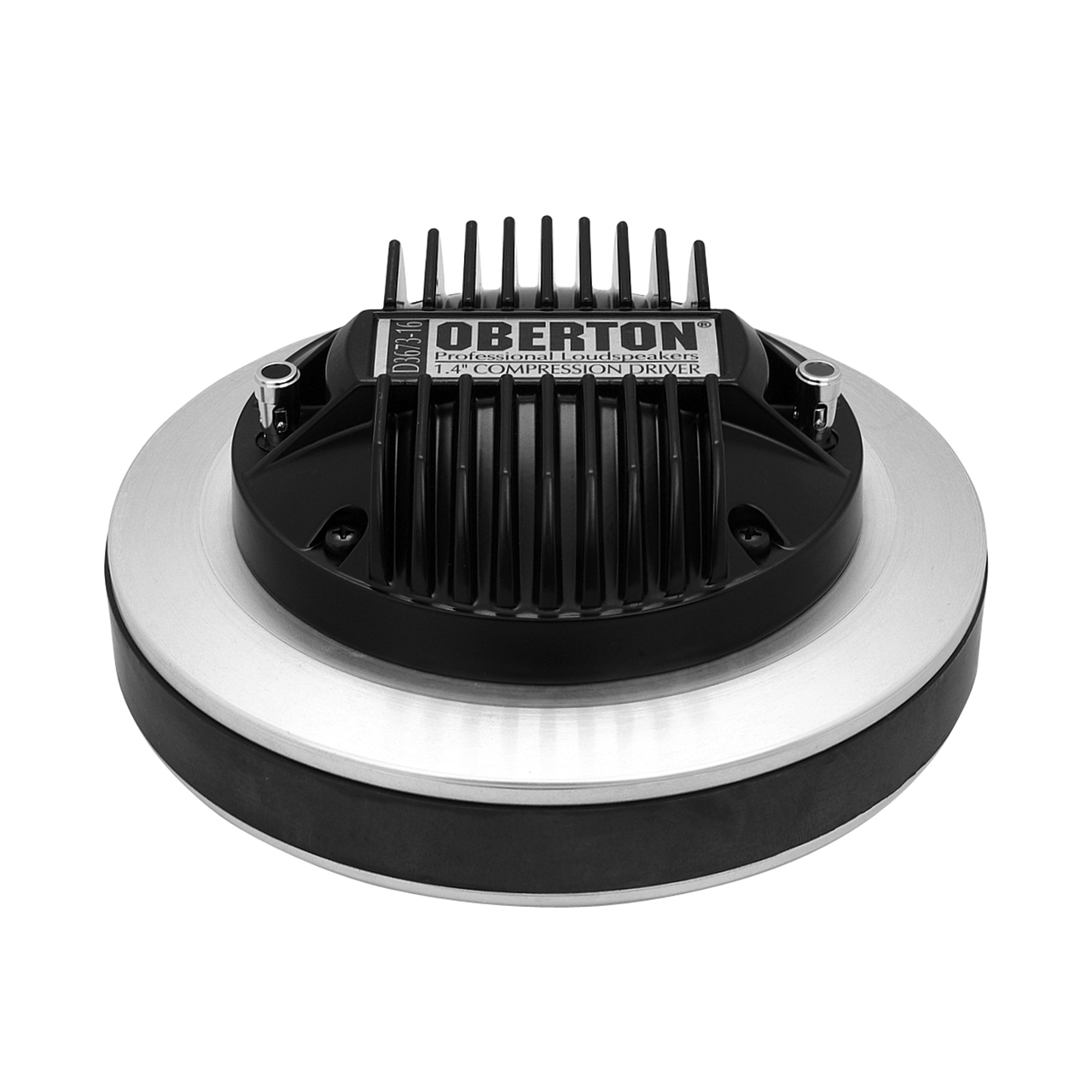

OBERTON D3673
1.4” High Frequency Compression Driver, 2.85” voice coil, 80 W, 110.5 dB, 8/16 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
80W |
| Tweeter Diameter |
1.4" |
| Magnetic Material |
Ferrite |
Description
KEY FEATURES
- Throat diameter: 1.4″/36 inch/mm
- Impedance: 8 / 16 Ohm
- Power Capacity: 80 W
- Program Power Capacity: 160 W
- Frequency Range: 600 Hz – 17 kHz
S P E C I F I C A T I O N S
| Throat diameter | 36 mm (1.4 in.) |
|---|---|
| Nominal impedance | 8 / 16 Ohms |
| Minimum impedance | 7.8 / 12 Ohms |
| DC resistance | 6.5 / 10 Ohms |
| Power capacity | (1-20 kHz) 80 W |
| Program Power Capacity | (1-20 kHz) 160 W |
| Sensitivity | (2 kHz – 15 kHz) 110.5 dB/W/m |
| Frequency Range | 600Hz-17 kHz |
|---|---|
| Recommended crossover | 800 Hz or higher 12 dB/oct.min |
| Voice coil diameter | 72 mm (2.85 in.) |
| Diaphragm | Sandwich Polyester |
| Voice coil material | Aluminium |
| Voice coil former | Kapton |
| Flux density | 1.85 T |
