10” Midrange , 2.5” voice coil, 250 W, 97 dB, 8 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
250W |
| Speaker Diameter |
10" |
| Magnetic Material |
Ferrite |
| Speaker Type |
Cone Speakers |

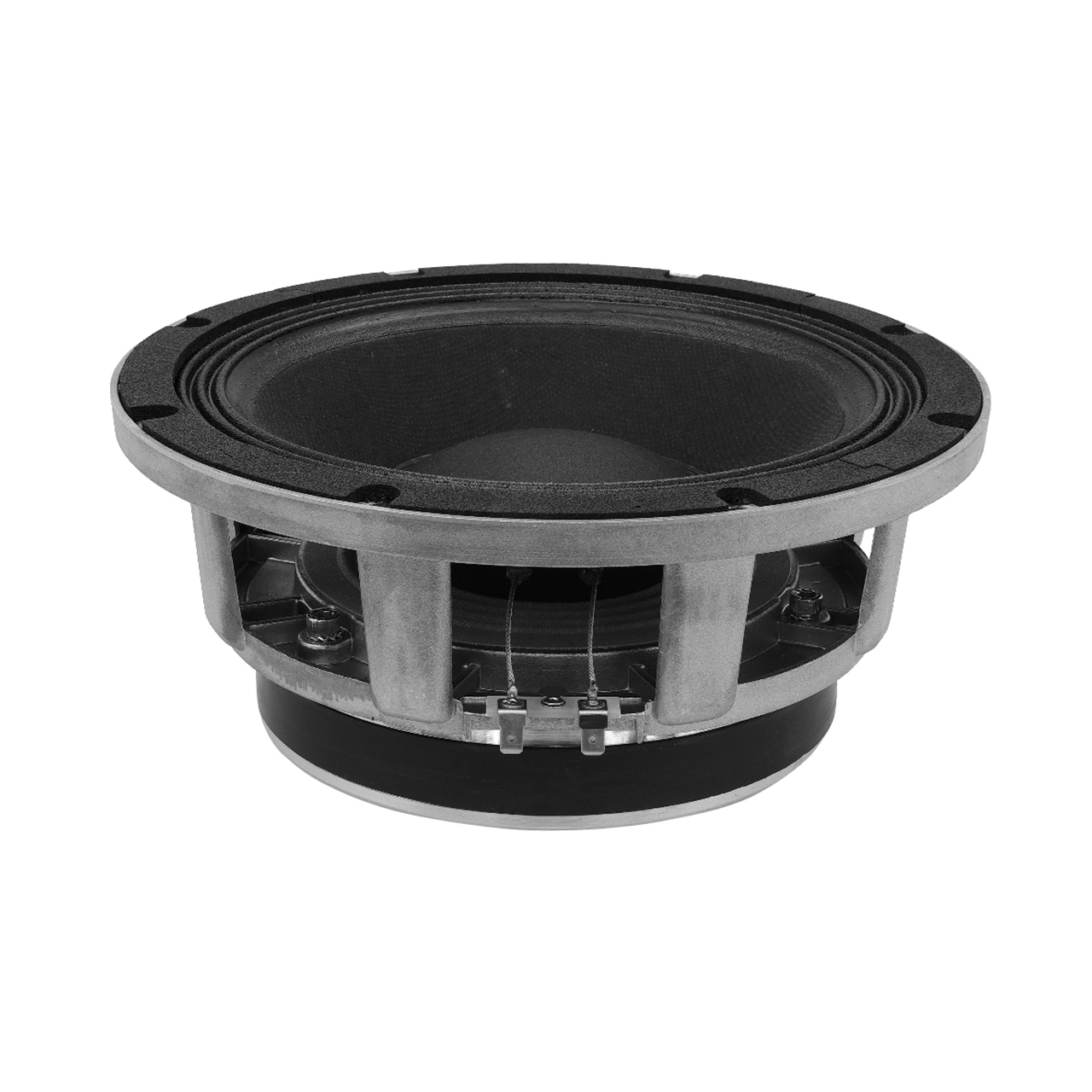

The 10M250 loudspeakers is designed as a power midrange speaker, providing high output and low distortion midrange from 250 Hz to 3 kHz. It features aluminium die cast frame, 169 mm magnet structure and curvilinear cone.
10M250 is suitable for application as the high power midrange in 3 way boxes including horn loading application.
| Nominal Diameter | 10″/262 inch/mm |
|---|---|
| Impedance | 8 Ohm |
| Minimum Impedance | 7.17 Ohm |
| Power Capacity AES | 250 W |
| Program Power | 500 W |
| Sensitivity | (500-5000 Hz) 97 dB/W/m |
| Frequency Range | 70 – 5000 Hz |
| Voice Coil Diameter | 64 mm |
| Voice Coil Former | Kapton™ |
|---|---|
| V.C. Winding Depth | 10 mm |
| Magnet Gap Depth | 9 mm |
| Cone Material | Paper |
| Basket | Die cast aluminium |
| Magnet | Ferrite |
| Flux Density | 1.40 T |
| Voice Coil Material | Aluminium |
