8” Midrange , 2” voice coil, 250 W, 100 dB, 8 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
250W |
| Speaker Diameter |
8" |
| Magnetic Material |
Ferrite |
| Speaker Type |
Cone Speakers |

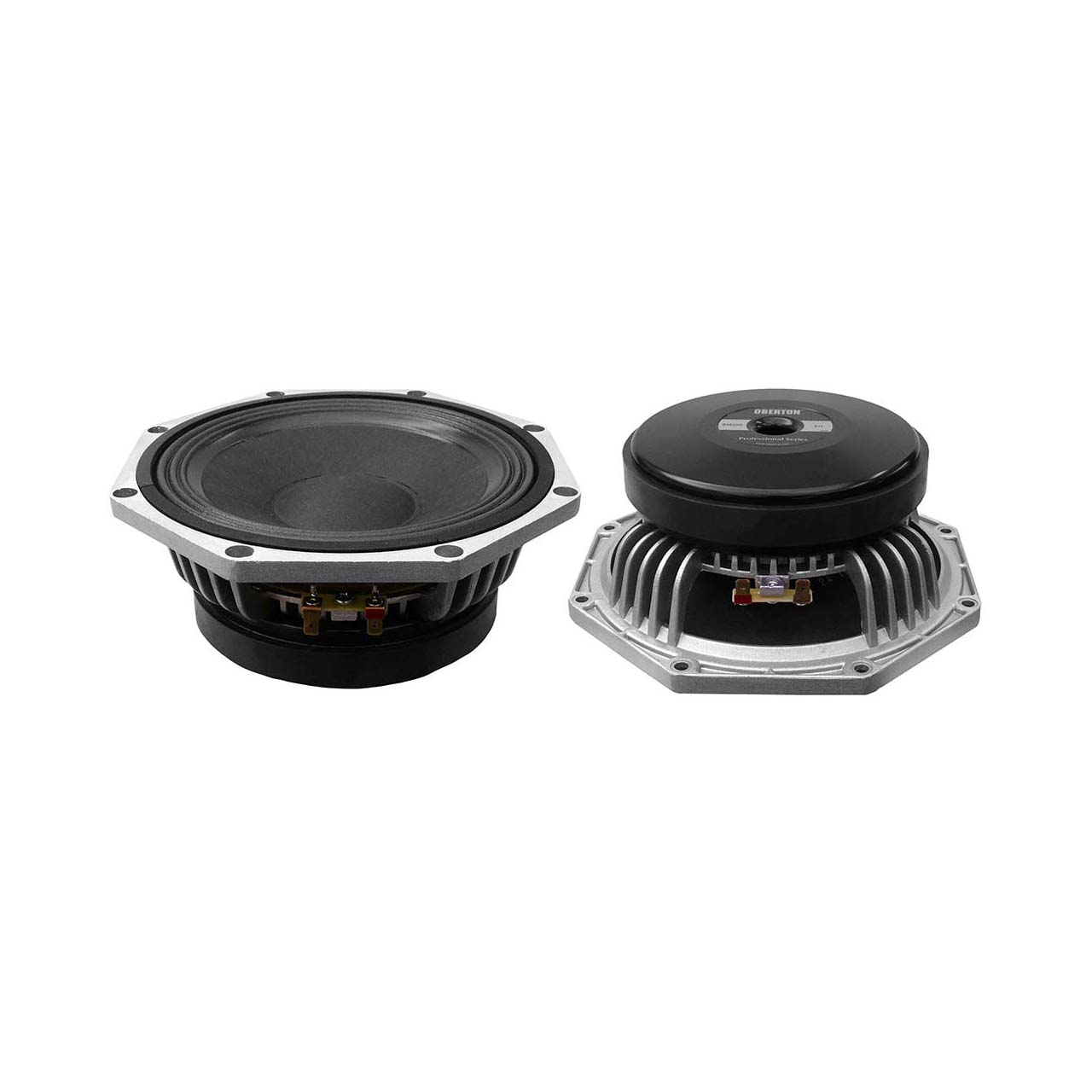

The 8M250 loudspeaker is combining high efficiency and 250W power capacity with use of 51 mm aluminium voice coil. It features aluminium die cast frame, 156 mm magnet structure and curvilinear paper cone. The top and back plates are treated with special high quality epoxy electro-deposition coating, which extremely improves the corrosion resistance of the speaker.
8M250 is intended for use as a direct radiating or horn loaded midrange speaker.
| Nominal Diameter | 8″/203mm |
|---|---|
| Impedance | 8 Ohm |
| Minimum Impedance | 6.20 Ohm |
| Power Capacity AES | 250 W |
| Program Power | 500 W |
| Sensitivity | (500-5000 Hz) 99.5 dB/W/m |
| Frequency Range | 90 – 5000 Hz |
| Voice Coil Diameter | 51 mm |
| Voice Coil Former | Kapton™ |
|---|---|
| V.C. Winding Depth | 10 mm |
| Magnet Gap Depth | 9 mm |
| Cone Material | Paper with glassfiber |
| Basket | Die cast aluminium |
| Magnet | Strontium ferrite |
| Flux Density | 1.43 T |
| Voice Coil Material | Aluminium |
