12” Neodymium Woofer, 3” voice coil, 500 W, 100 dB, 8 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
500W |
| Speaker Diameter |
12" |
| Magnetic Material |
Neodymium |
| Speaker Type |
Coaxial Speakers |

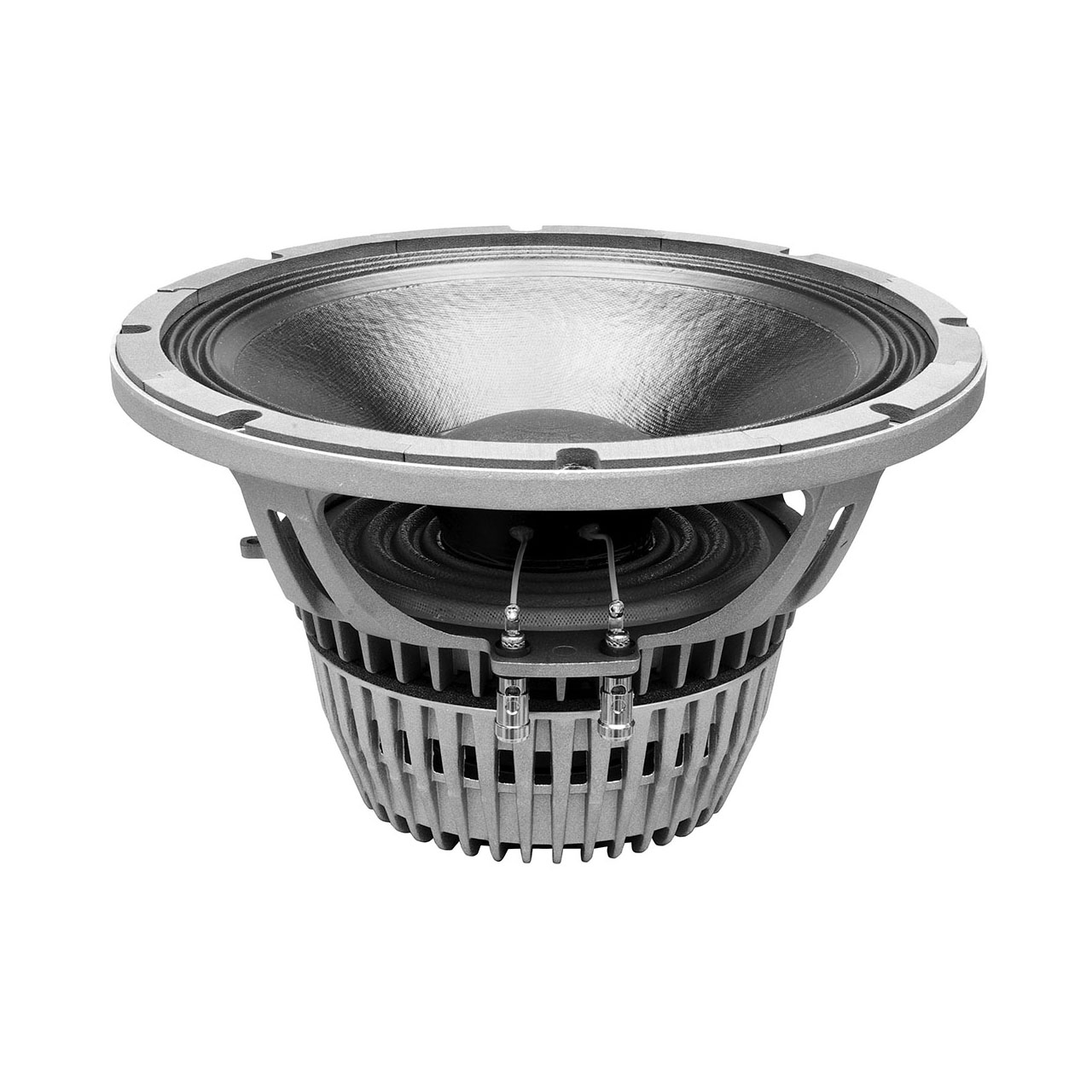

12NB450 loudspeaker combining good linearity and efficiency with high power handling capabilities, with use of 77 mm aluminium voice coil and silicone spider. It features aluminium die cast frame with integrated triple demodulating rings and vented neodymium magnet structure. The massive heatsink improve the cooling of the magnet structure, which reduce power compression.
12NB450 is suitable for application as LF driver in compact 2- way boxes, and small stage monitors.
| Nominal Diameter | 12″/315 inch/mm |
|---|---|
| Impedance | 8 Ohm |
| Minimum Impedance | 6.54 Ohm |
| Power Capacity AES | 500 W |
| Program Power | 1000 W |
| Sensitivity | (200 -2000 Hz) 100 dB/W/m |
| Frequency Range | 50 – 2000 Hz |
| Voice Coil Diameter | 77 mm |
| Voice Coil Former | Kapton™ |
|---|---|
| V.C. Winding Depth | 21 mm |
| Magnet Gap Depth | 11 mm |
| Cone Material | Paper with glassfiber |
| Basket | Die cast aluminium |
| Magnet | Neodymium |
| Flux Density | 1.30 T |
| Voice Coil Material | Aluminium |
