15” Midbass with extended midrange, 2.5” voice coil, 350 W, 102.5 dB, 8 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
350W |
| Speaker Diameter |
15" |
| Magnetic Material |
Ferrite |
| Speaker Type |
Cone Speakers |

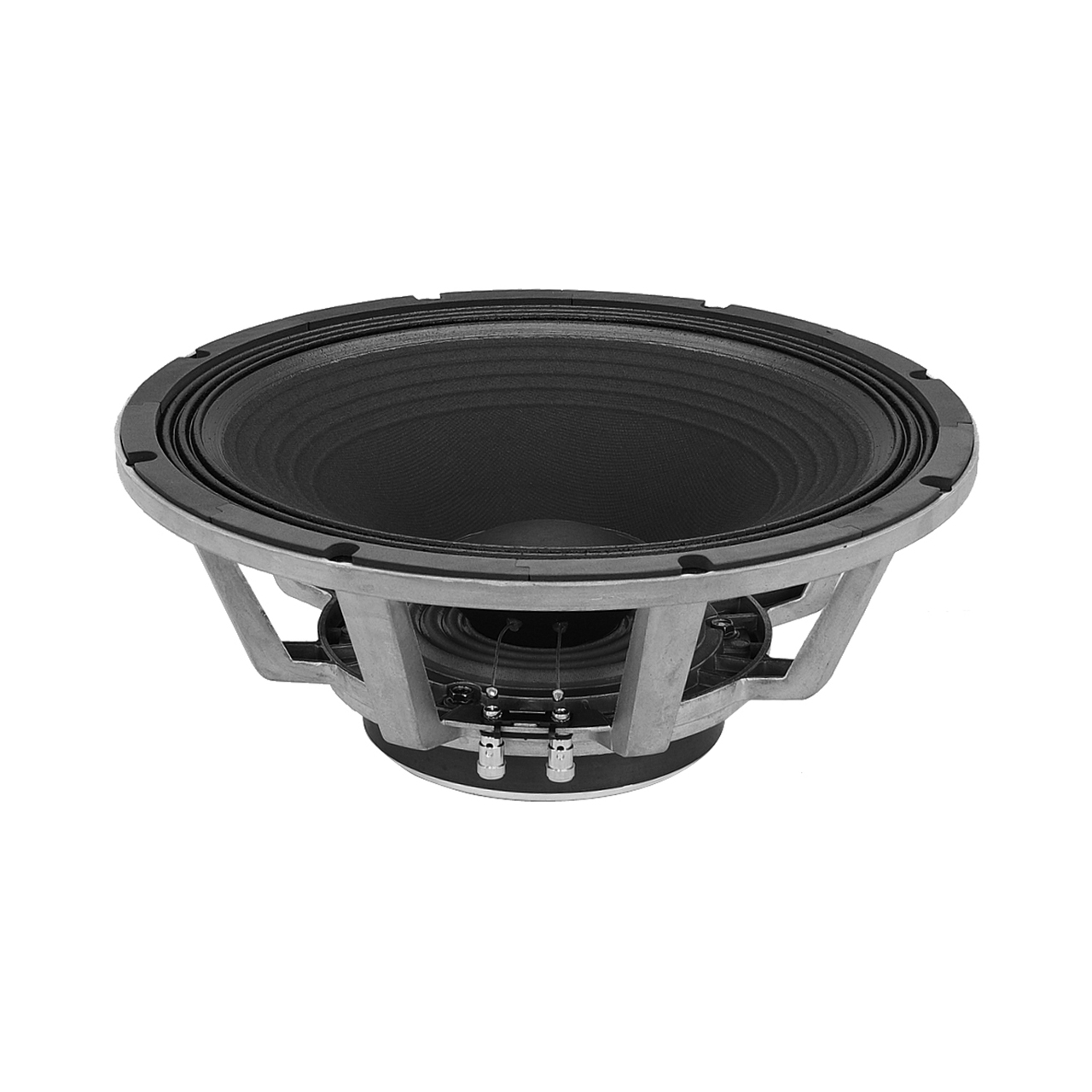

The 15L400 loudspeaker is combining an exceptional efficiency, extended midrange, high power handling capability with use of 64 mm aluminium voice coil. It features vented aluminium die cast frame, 180 mm magnet structure and special ribbed curvilinear paper cone.
15L400 is suitable for application as the LF driver in compact 15” 2- way boxes.
| Nominal Diameter | 15″/381 inch/mm |
|---|---|
| Impedance | 8 Ohm |
| Minimum Impedance | 6.23 Ohm |
| Power Capacity AES | 400 W |
| Program Power | 800 W |
| Sensitivity | (200 – 2000)Hz 102.5 dB/W/m |
| Frequency Range | 45 – 4000 Hz |
| Voice Coil Diameter | 64 mm |
| Voice Coil Former | Kapton™ |
|---|---|
| V.C. Winding Depth | 11 mm |
| Magnet Gap Depth | 9 mm |
| Cone Material | Paper |
| Basket | Die cast aluminium |
| Magnet | Ferrite |
| Flux Density | 1.35 |
| Voice Coil Material | Aluminium |
