8” Neodymium Midbass, 2.5” voice coil, 250 W, 96 dB, 8 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
250W |
| Speaker Diameter |
8" |
| Magnetic Material |
Neodymium |
| Speaker Type |
Coaxial Speakers |

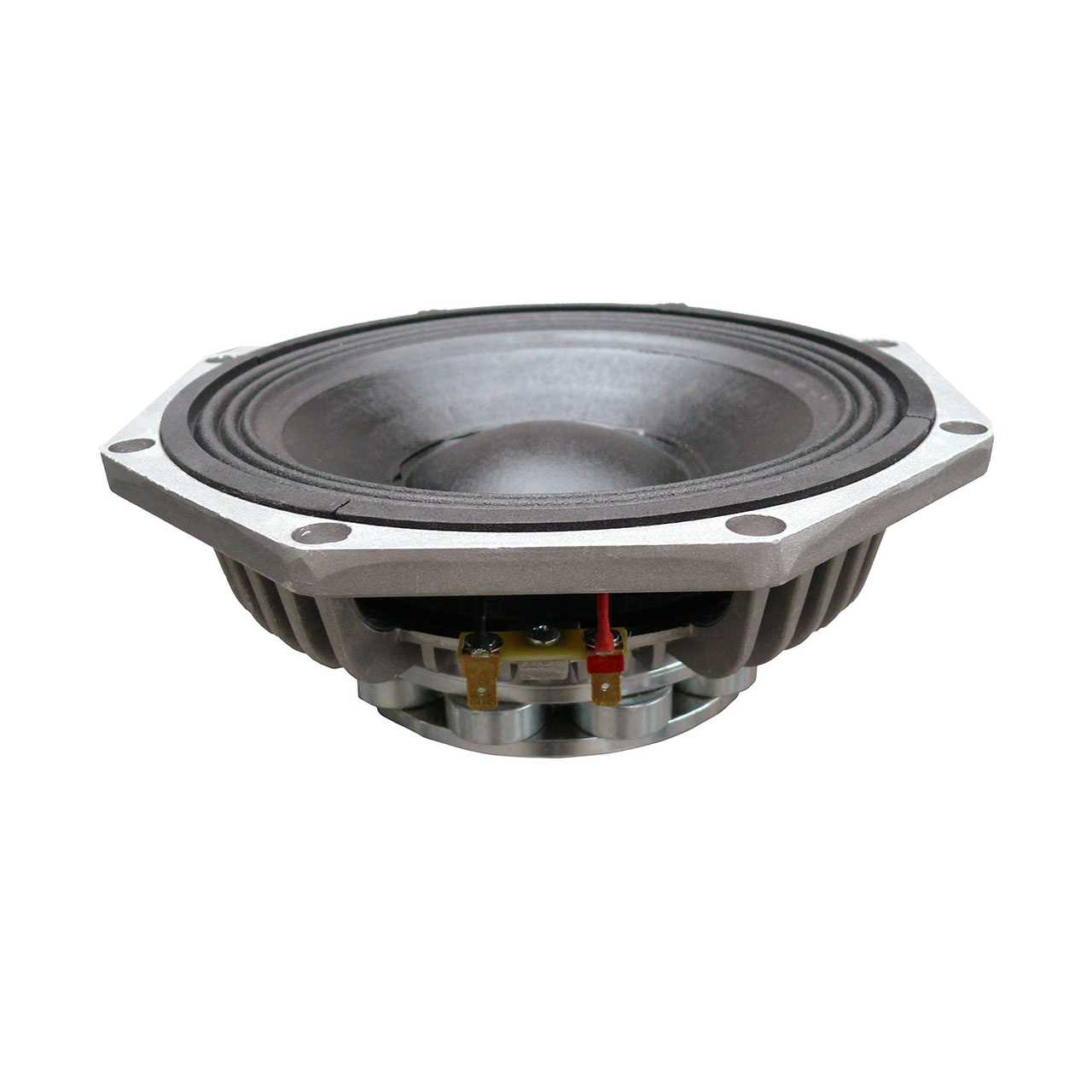

The 8NMB250v4 is high efficiency, high power midbass neodymium loudspeaker with ultra-low distortion, specially designed to provide superior sound pressure level. It features 64 mm aluminium voice coil, aluminium die cast frame with powerful neodymium magnet structure with double demodulating rings.
It is suitable for application as high power midrbass in direct radiating boxes and line array application.
| Nominal Diameter | 8″/210 inch/mm |
|---|---|
| Impedance | 8 Ohm |
| Minimum Impedance | 6.56 Ohm |
| Power Capacity AES | 250 W |
| Program Power | 500 W |
| Sensitivity | (100-2000 Hz) 96 dB/W/m |
| Frequency Range | 80 – 4000 Hz |
| Voice Coil Diameter | 64 mm |
| Voice Coil Former | Glassfiber |
|---|---|
| V.C. Winding Depth | 12 mm |
| Magnet Gap Depth | 6 mm |
| Cone Material | Paper with carbone fiber |
| Basket | Die cast aluminium |
| Magnet | Neodymium |
| Flux Density | 1.45 T |
| Voice Coil Material | Copper Clad Aluminium |
