The ND100-2 is powerful 2” neodymium driver , features an Carbone composite dome and vented suspension, providing exceptional high output with very low distortion and frequency response with high linearity. The voice coil assembly is easily field replaceable without soldering. It is designed for a wide variety of applications in high quality, high power professional reinforcement systems and stage monitors.
OBERTONNeodymium

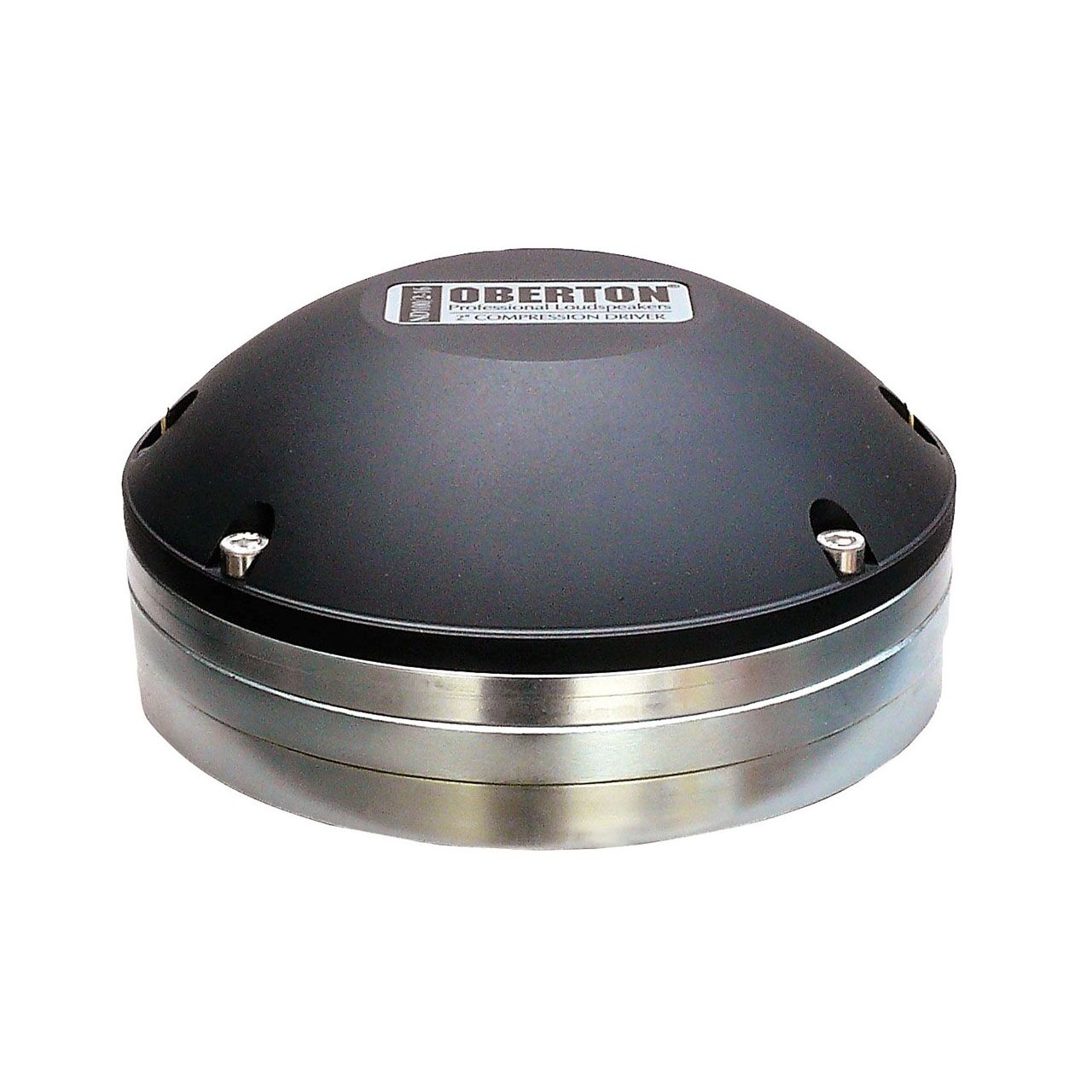

OBERTON ND100-2
2” High Frequency Compression Driver, 4” voice coil, 125 W, 112.5 dB, 8/16 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
125W |
| Tweeter Diameter |
2" |
| Magnetic Material |
Neodymium |
Description
KEY FEATURES
- Throat diameter: 2″/461 inch/mm
- Impedance: 8 / 16 Ohm
- Power Capacity: 125 W
- Program Power Capacity: 250 W
- Frequency Range: 500 Hz – 18 kHz
S P E C I F I C A T I O N S
| Throat diameter | 50.8 mm (2 in.) |
|---|---|
| Nominal impedance | 8 / 16 Ohms |
| Minimum impedance | 10.75 / 16.38 Ohms |
| DC resistance | 4.6 / 9.5 Ohms |
| Power capacity | (1-20 kHz) 125 W |
| Program Power Capacity | (1-20 kHz) 250 W |
| Sensitivity | (800 Hz – 4 kHz) 112.5 dB/W/m |
| Frequency Range | 500Hz-18 kHz |
|---|---|
| Recommended crossover | 800 Hz or higher 12 dB/oct.min |
| Voice coil diameter | 100 mm (4 in.) |
| Diaphragm | Carbon composite |
| Voice coil material | Copper Clad Aluminium |
| Voice coil former | Kapton |
| Flux density | 2.0 T |
