The ND2539 is a 1″ professional compression driver that delivers high sonic quality in a very small package. The driver is designed for a wide variety of applications and special for compact boxes with low weight.
OBERTONNeodymium

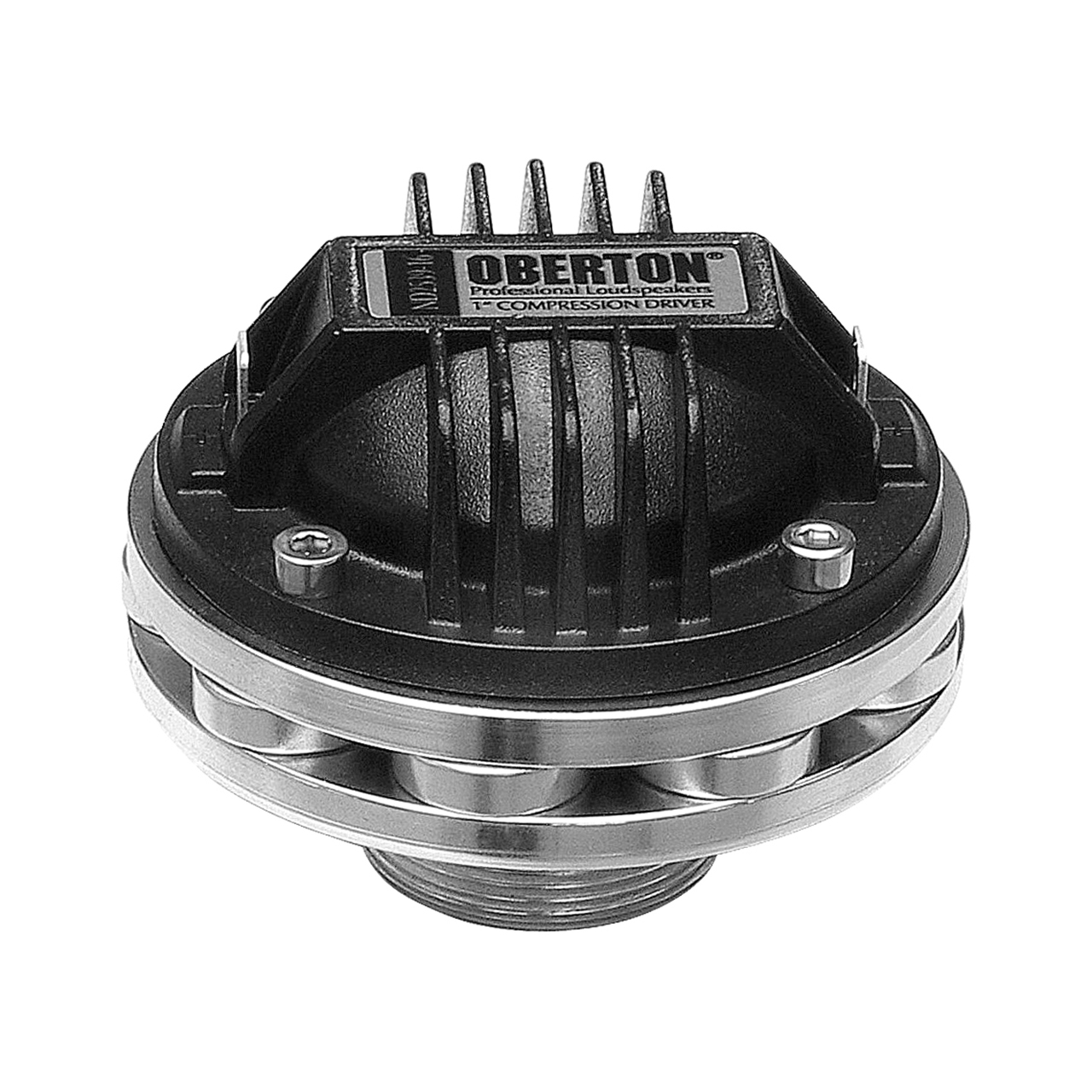

OBERTON ND2539
1” High Frequency Compression Driver, 1.5” voice coil, 30 W, 105 dB, 8/16 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
30W |
| Tweeter Diameter |
1" |
| Magnetic Material |
Neodymium |
Description
KEY FEATURES
- Throat diameter: 1″/25.4 inch/mm
- Impedance: 8 / 16 Ohm
- Power Capacity: 30 W
- Program Power Capacity: 60 W
- Frequency Range: 1.5 Hz – 20 kHz
S P E C I F I C A T I O N S
| Throat diameter | 25.4 mm (1 in.) |
|---|---|
| Nominal impedance | 8 / 16 Ohms |
| Minimum impedance | 7.43 / 11.8 Ohms |
| DC resistance | 5.47 / 10.7 Ohms |
| Power capacity | (1-20 kHz) 30 W |
| Program Power Capacity | (1-20 kHz) 60 W |
| Sensitivity | (2 kHz – 15 kHz) 105 dB/W/m |
| Frequency Range | 1.5 kHz-20 kHz |
|---|---|
| Recommended crossover | 2 kHz or higher 12 dB/oct.min |
| Voice coil diameter | 38 mm (1.5 in.) |
| Diaphragm | Sandwich Polyester |
| Voice coil material | Aluminium |
| Voice coil former | Kapton |
| Flux density | 1.56 T |
