The WS2544 is high frequency line array wave source with exit 2,75” x 1”. It is based on cuted ( 71 mm high ) version of neodymium compression driver ND2545. This design allow distance between the drivers axis 74 mm. It has excellent sound pressure over 10 kHz, which is very important for Line Array application.
OBERTONNeodymium

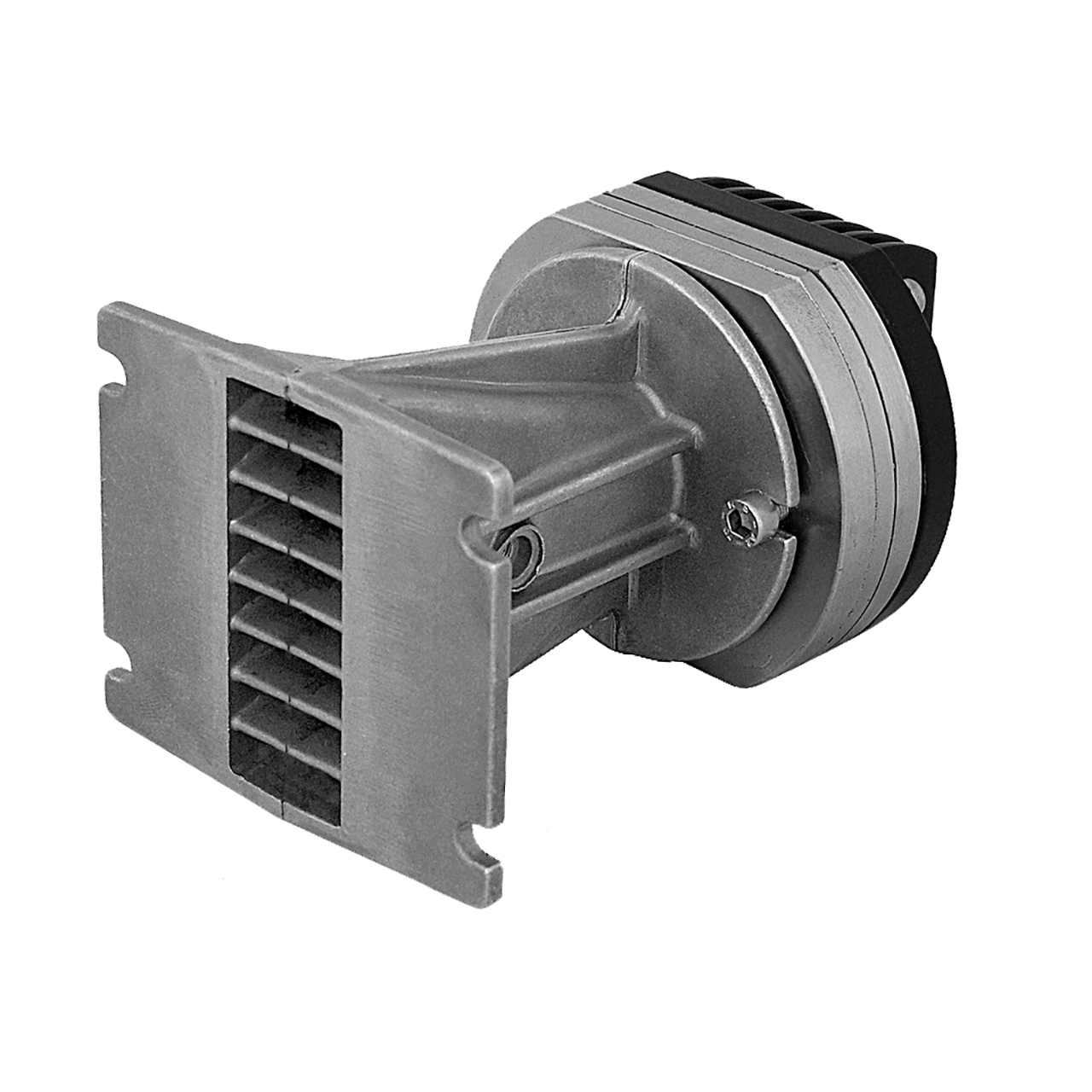

OBERTON WS2544
2.75”x 1” High Frequency Line Array Wave Source, 1.75” voice coil, 40 W, 107.5 dB, 8/16 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
40W |
| Tweeter Diameter |
2.75”x 1” |
| Magnetic Material |
Neodymium |
| Speaker Type |
Line Array Wave Source |
Description
KEY FEATURES
- Nominal exit: 70 x 25,4 mm (2,75 x 1 in)
- Impedance: 8 / 16 Ohm
- Power Capacity: 40 W
- Program Power Capacity: 80 W
- Frequency Range: 1 kHz – 20 kHz
S P E C I F I C A T I O N S
| Nominal exit | 70 x 25,4 mm (2,75 x 1 in) |
|---|---|
| Nominal impedance | 8 / 16 Ohms |
| Minimum impedance | 6,35/12,62 Ohms |
| DC resistance | 5,15/10,8 Ohms |
| Power capacity | (1-20 kHz) 40 W |
| Program Power Capacity | (1-20 kHz) 80 W |
| Sensitivity | (2 kHz – 15 kHz) 107.5 dB/W/m |
| Frequency Range | 1 kHz-20 kHz |
|---|---|
| Recommended crossover | 1.5 kHz or higher 12 dB/oct.min |
| Voice coil diameter | 44 mm (1.75 in.) |
| Diaphragm | Sandwich Polyester |
| Voice coil material | Aluminium |
| Voice coil former | Kapton |
| Flux density | 1.9 T |
