12” Neodymium Midbass, 3” voice coil, 450 W, 101 dB, 8 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
450W |
| Speaker Diameter |
12" |
| Magnetic Material |
Neodymium |
| Speaker Type |
Coaxial Speakers |

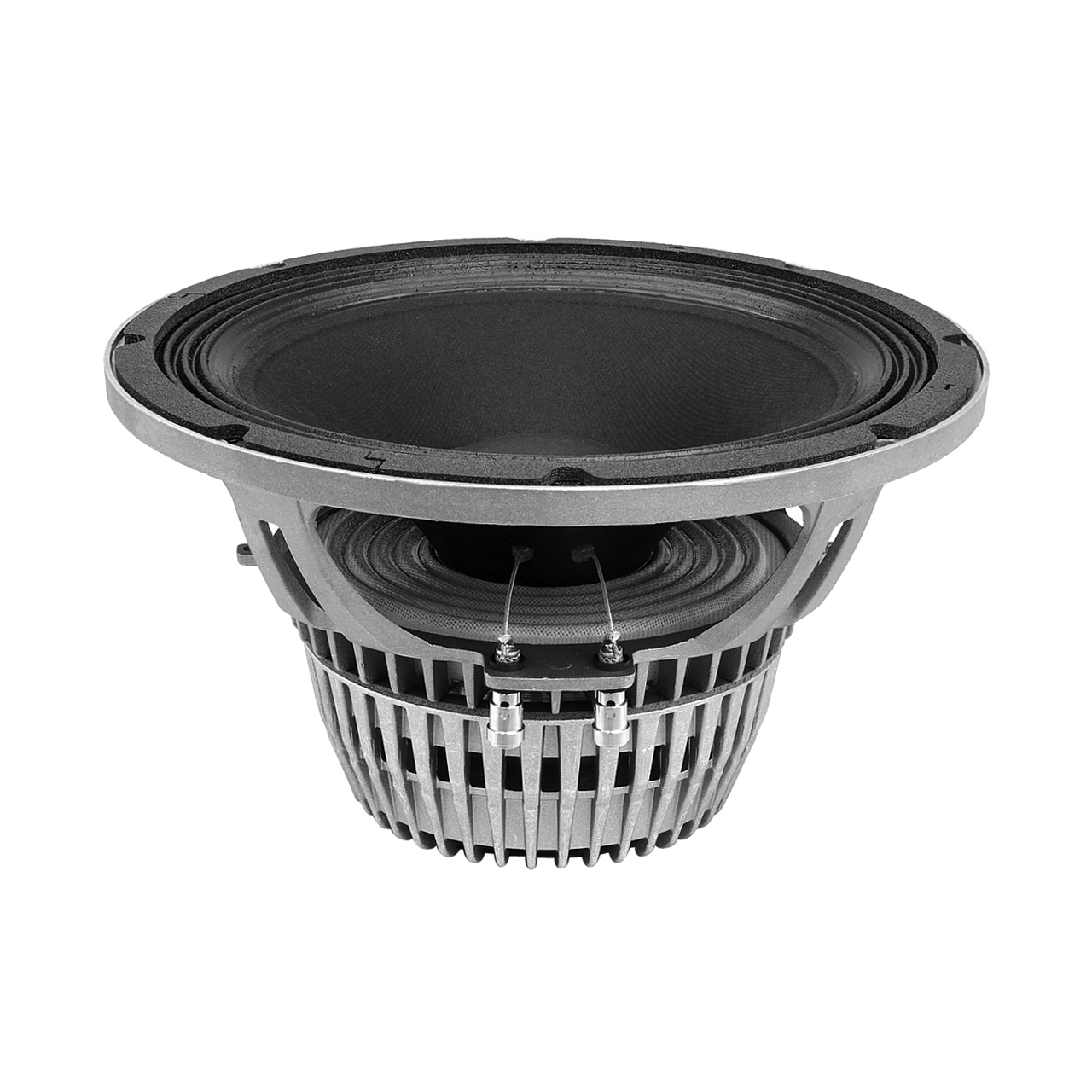

12NXL400 loudspeaker combining high efficiency with high power handling capabilities, with use of 77 mm aluminium voice coil and silicone spider. It features aluminium die cast frame with integrated triple demodulating rings and vented neodymium magnet structure. The massive heatsink improve the cooling of the magnet structure, which reduce power compression.
12NXL400 is suitable when fast and precise midbass reproduction is required.
| Nominal Diameter | 12″/315 inch/mm |
|---|---|
| Impedance | 8 Ohm |
| Minimum Impedance | 7.33 Ohm |
| Power Capacity AES | 450 W |
| Program Power | 900 W |
| Sensitivity | (200 -2000 Hz) 101 dB/W/m |
| Frequency Range | 50 – 3500 Hz |
| Voice Coil Diameter | 77 mm |
| Voice Coil Former | Kapton™ |
|---|---|
| V.C. Winding Depth | 15 mm |
| Magnet Gap Depth | 9 mm |
| Cone Material | Paper |
| Basket | Die cast aluminium |
| Magnet | Neodymium |
| Flux Density | 1.45 T |
| Voice Coil Material | Aluminium |
