The Oberton D2525 is compact 1″ professional compression driver that delivers excellent sonic quality. The unique phasing plug combined with sandwich polyester dome achieve high sensitivity and linear frequency response up to 20 kHz. The sound of the D2525 has an very good dynamic range and produces even the most complex music signals with depth and definition. The D2525 is designed for a wide variety of applications including, small to medium high quality professional loudspeaker boxes
OBERTONFerrite

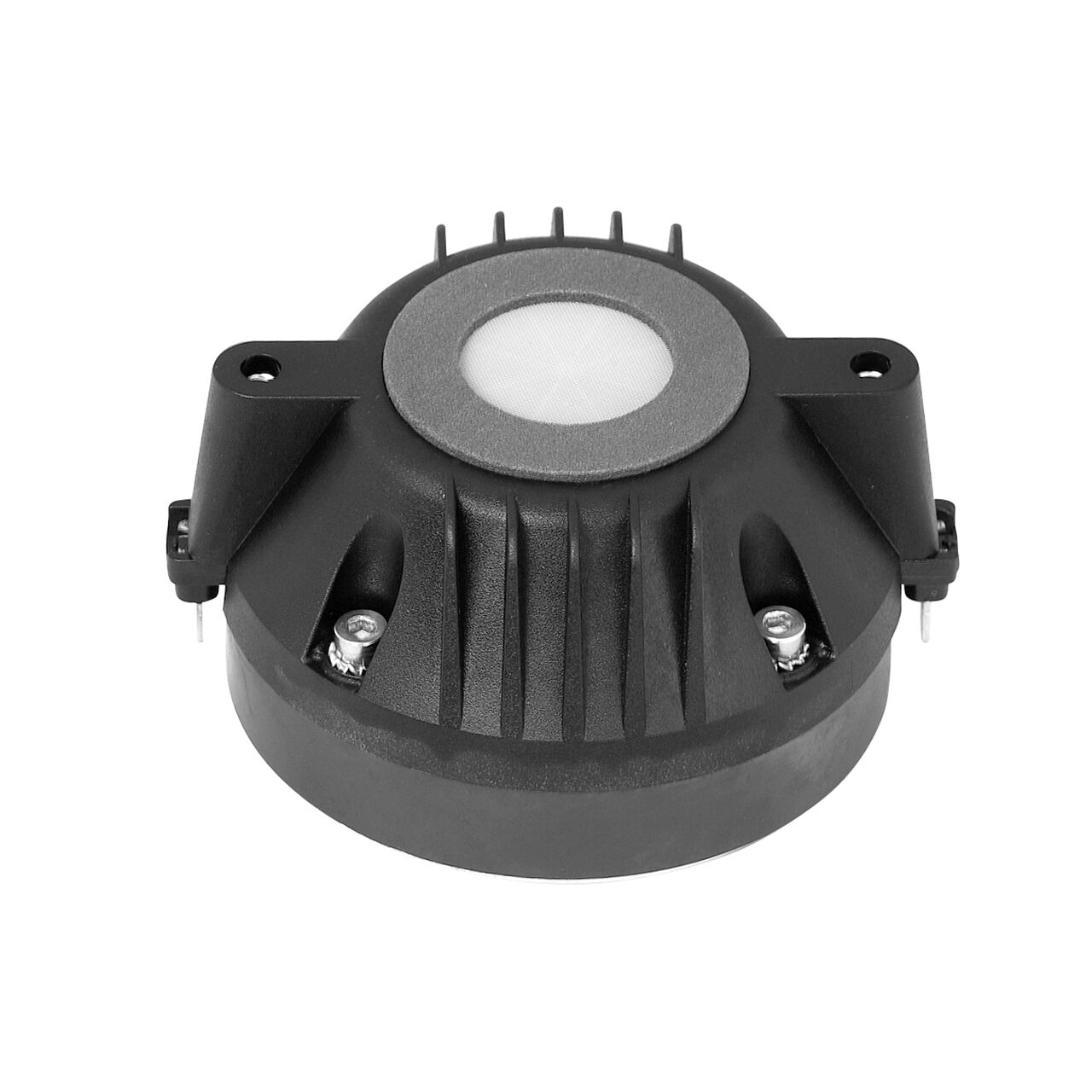

OBERTON D2525
1” High Frequency Compression Driver, 1” voice coil, 20 W, 106 dB, 8 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
20W |
| Tweeter Diameter |
1" |
| Magnetic Material |
Ferrite |
Description
KEY FEATURES
- Throat diameter: 1″/25.4 inch/mm
- Impedance: 8 Ohm
- Power Capacity: 20 W
- Program Power Capacity: 40 W
- Frequency Range: 1.5 kHz – 20 kHz
S P E C I F I C A T I O N S
| Throat diameter | 25.4 mm (1 in.) |
|---|---|
| Nominal impedance | 8 Ohms |
| Minimum impedance | 6.74 Ohms |
| DC resistance | 5.65 Ohms |
| Power capacity | (2-20 kHz) 20 W |
| Program Power Capacity | (2-20 kHz) 40 W |
| Sensitivity | (2 kHz – 15 kHz) 105 dB/W/m |
| Frequency Range | 1.5 kHz-20 kHz |
|---|---|
| Recommended crossover | 2.5 kHz or higher 12 dB/oct.min |
| Voice coil diameter | 25 mm (1 in.) |
| Diaphragm | Sandwich Polyester |
| Voice coil material | Aluminium |
| Voice coil former | Kapton |
| Flux density | 1.75 T |
