The D72CN is 1.4” high frequency compression driver, which features a carbon composite dome and high damped vented suspension, providing exceptional high output with low distortion and frequency response with high linearity. It is designed for application in high level professional sound equipment.
OBERTONFerrite

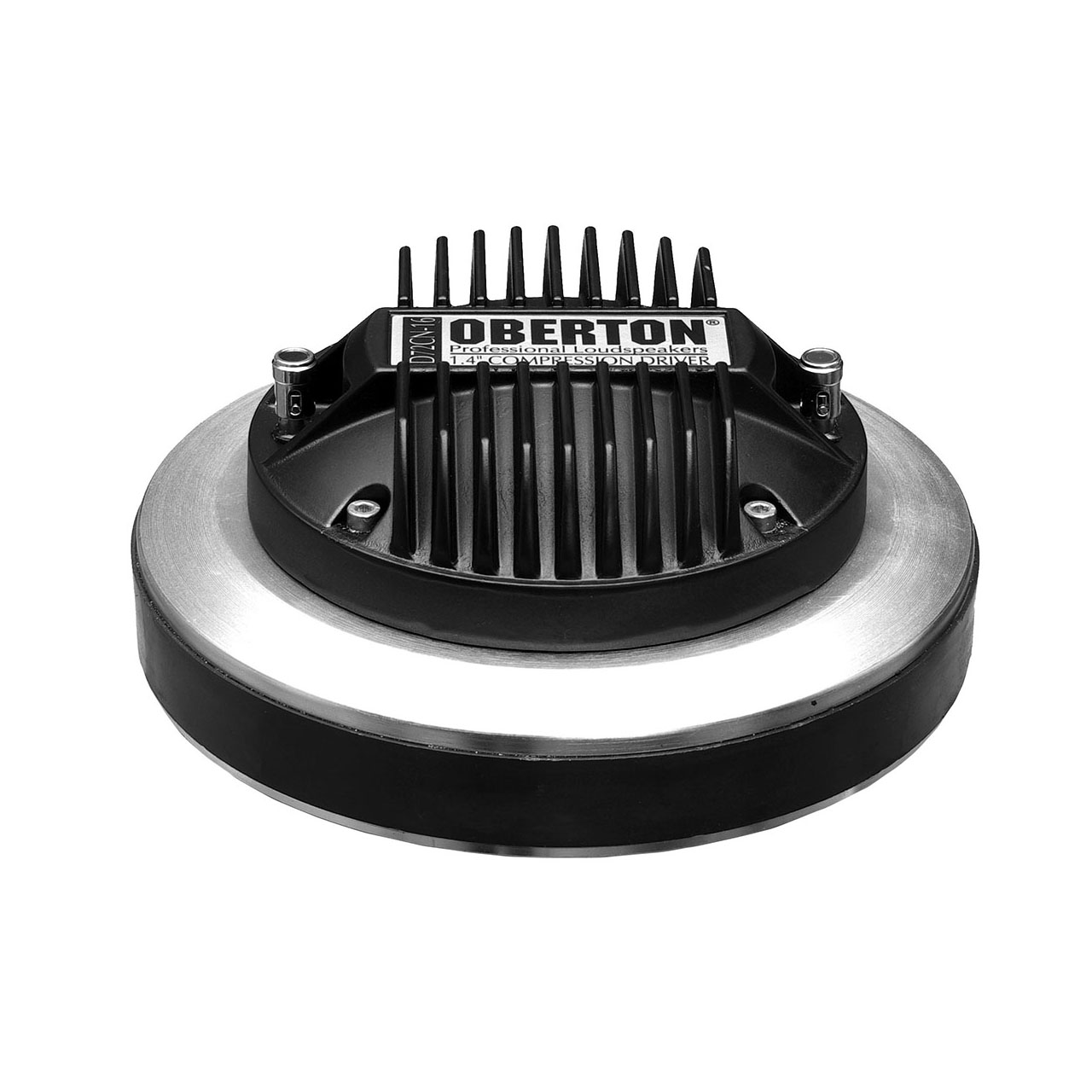

OBERTON D72CN
1.4” High Frequency Compression Driver, 2.85” voice coil, 100 W, 109 dB, 8/16 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
100W |
| Tweeter Diameter |
1.4" |
| Magnetic Material |
Ferrite |
Description
KEY FEATURES
- Throat diameter: 1.4″/36 inch/mm
- Impedance: 8 / 16 Ohm
- Power Capacity: 100 W
- Program Power Capacity: 200 W
- Frequency Range: 500 Hz – 18 kHz
S P E C I F I C A T I O N S
| Throat diameter | 36 mm (1.4 in.) |
|---|---|
| Nominal impedance | 8 / 16 Ohms |
| Minimum impedance | 8.48 / 11.7 Ohms |
| DC resistance | 6.78 / 10 Ohms |
| Power capacity | (1-20 kHz) 100 W |
| Program Power Capacity | (1-20 kHz) 200 W |
| Sensitivity | (1 kHz – 10 kHz) 109 dB/W/m |
| Frequency Range | 500Hz-18 kHz |
|---|---|
| Recommended crossover | 1 kHz or higher 12 dB/oct.min |
| Voice coil diameter | 72 mm (2.85 in.) |
| Diaphragm | Carbon Composite |
| Voice coil material | CCAW |
| Voice coil former | Kapton |
| Flux density | 1.85 T |
