The OBERTON D2538 – 1” compression driver is small version of D2544. It is designed for application in small and medium loudspeaker boxes. It has a typical OBERTON sound at reduced cost.
OBERTONFerrite

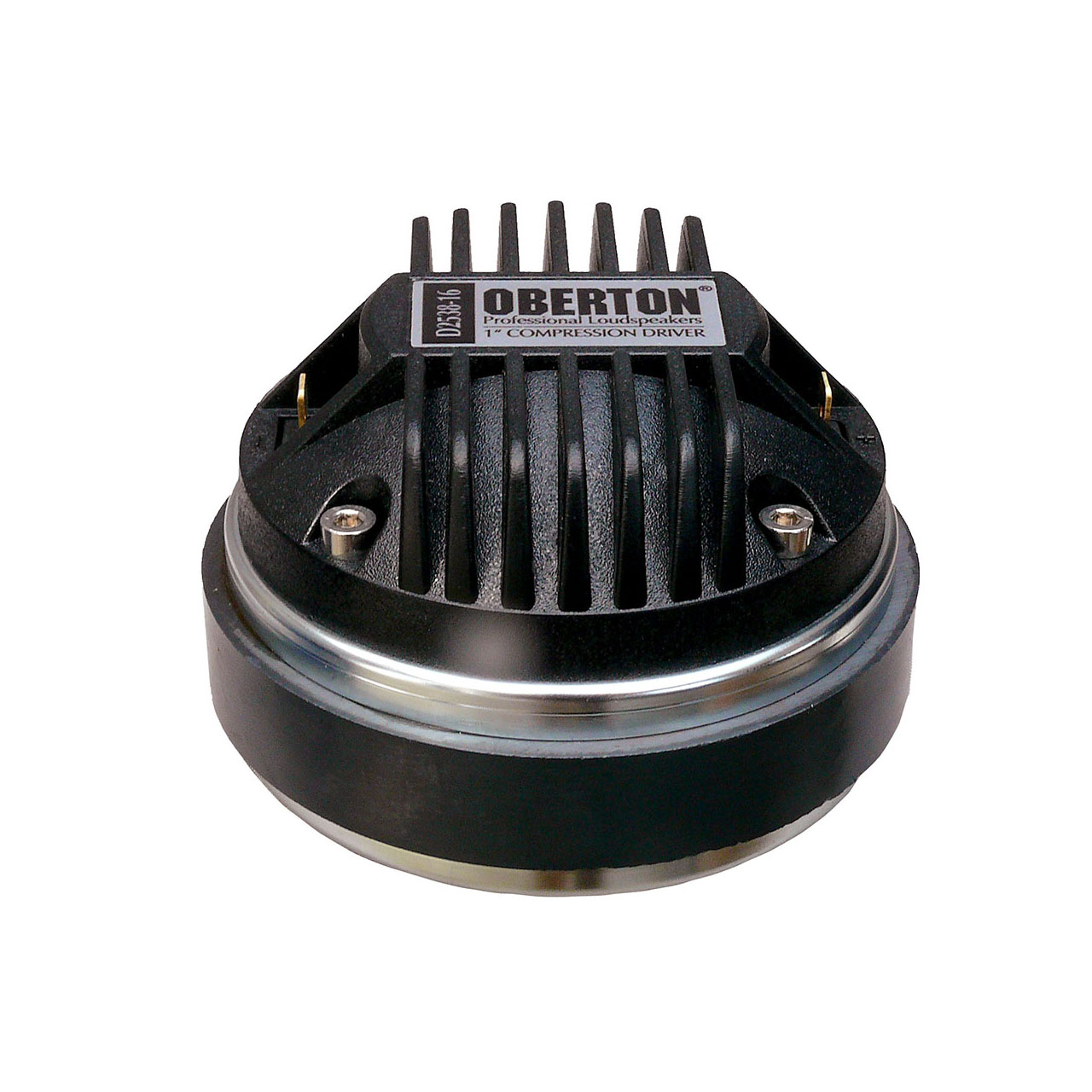

OBERTON D2538
1” High Frequency Compression Driver, 1.5” voice coil, 30 W, 105.5 dB, 8/16 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
30W |
| Tweeter Diameter |
1" |
| Magnetic Material |
Ferrite |
Description
KEY FEATURES
- Throat diameter: 1″/25.4 inch/mm
- Impedance: 8 / 16 Ohm
- Power Capacity: 30 W
- Program Power Capacity: 60 W
- Frequency Range: 1.5 kHz – 18 kHz
S P E C I F I C A T I O N S
| Throat diameter | 25.4 mm (1 in.) |
|---|---|
| Nominal impedance | 8 / 16 Ohms |
| Minimum impedance | 6.77 / 10.26 Ohms |
| DC resistance | 5.43 / 8.93 Ohms |
| Power capacity | (1-20 kHz) 30 W |
| Program Power Capacity | (1-20 kHz) 60 W |
| Sensitivity | (2 kHz – 15 kHz) 105.5 dB/W/m |
| Frequency Range | 1.5 kHz-18 kHz |
|---|---|
| Recommended crossover | 2 kHz or higher 12 dB/oct.min |
| Voice coil diameter | 38 mm (1.5 in.) |
| Diaphragm | Sandwich Polyester |
| Voice coil material | Copper Clad Aluminium |
| Voice coil former | Kapton |
| Flux density | 1.50 T |
