The D2544 high frequency compression driver features an integral dome and suspension made of special polyester, providing exceptional high output with low distortion and frequency response with high linearity. The voice coil assembly is easily fielded replaceable without soldering.
OBERTONFerrite

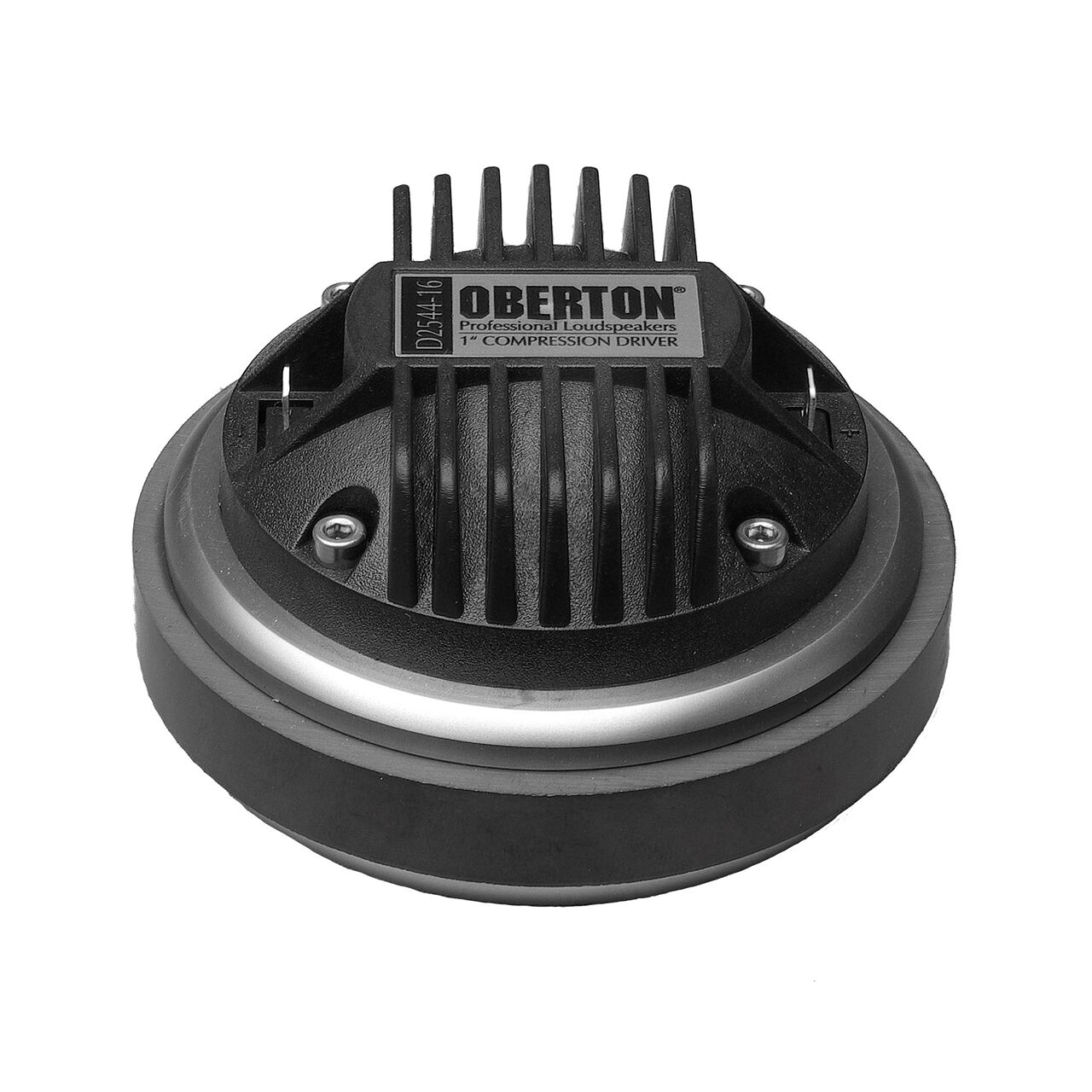

OBERTON D2544
1” High Frequency Compression Driver, 1.75” voice coil, 40 W, 108 dB, 8/16 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
40W |
| Tweeter Diameter |
1" |
| Magnetic Material |
Ferrite |
Description
KEY FEATURES
- Throat diameter: 1″/25.4 inch/mm
- Impedance: 8 / 16 Ohm
- Power Capacity: 40 W
- Program Power Capacity: 80 W
- Frequency Range: 1 kHz – 20 kHz
S P E C I F I C A T I O N S
| Throat diameter | 25.4 mm (1 in.) |
|---|---|
| Nominal impedance | 8 / 16 Ohms |
| Minimum impedance | 6.4 / 12.7 Ohms |
| DC resistance | 5.15 / 10.8 Ohms |
| Power capacity | (1-20 kHz) 40 W |
| Program Power Capacity | (1-20 kHz) 80 W |
| Sensitivity | (2 kHz – 15 kHz) 108 dB/W/m |
| Frequency Range | 1 kHz-20 kHz |
|---|---|
| Recommended crossover | 1.5 kHz or higher 12 dB/oct.min |
| Voice coil diameter | 44 mm (1.75 in.) |
| Diaphragm | Sandwich Polyester |
| Voice coil material | Aluminium |
| Voice coil former | Kapton |
| Flux density | 1.65 T |
