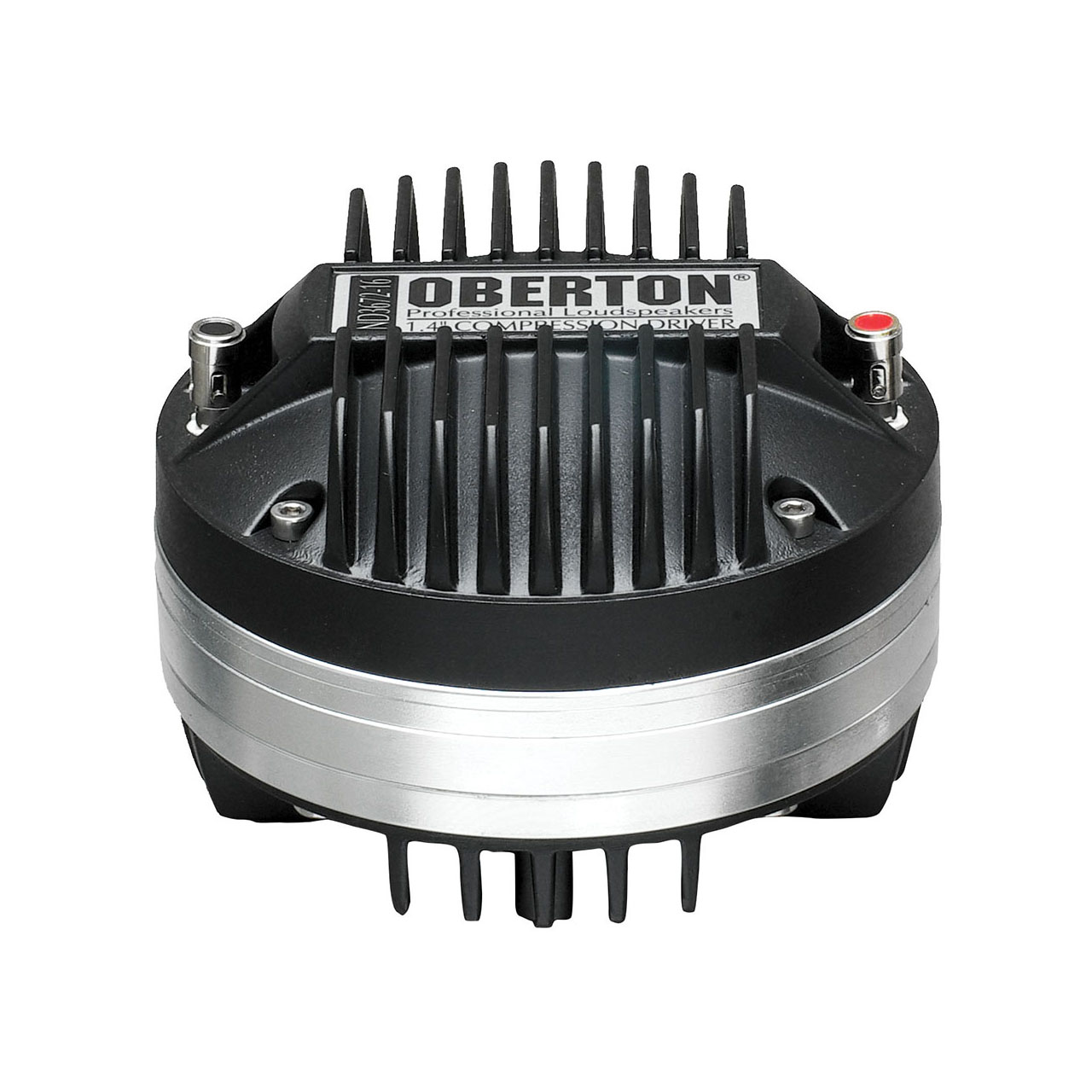

The ND3672 is powerful 1.4″ neodymium driver features an integral dome and suspension made of special polyester, providing exceptional high output with low distortion and frequency response with high linearity. The voice coil assembly is easily field replaceable without soldering. It is designed for a wide variety of applications in high quality, high power professional reinforcement systems and stage monitors.
OBERTONNeodymium
OBERTON ND3672
1.4” High Frequency Compression Driver, 2.85” voice coil, 75 W, 110 dB, 8/16 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
75W |
| Tweeter Diameter |
1.4" |
| Magnetic Material |
Neodymium |
Description
KEY FEATURES
- Throat diameter: 1.4″/36 inch/mm
- Impedance: 8 / 16 Ohm
- Power Capacity: 75 W
- Program Power Capacity: 150 W
- Frequency Range: 600 Hz – 16 kHz
S P E C I F I C A T I O N S
| Throat diameter | 36 mm (1.4 in.) |
|---|---|
| Nominal impedance | 8 / 16 Ohms |
| Minimum impedance | 7.8 / 12 Ohms |
| DC resistance | 6.5 / 10 Ohms |
| Power capacity | (1-20 kHz) 75 W |
| Program Power Capacity | (1-20 kHz) 150 W |
| Sensitivity | (2 kHz – 15 kHz) 110 dB/W/m |
| Frequency Range | 600Hz-16 kHz |
|---|---|
| Recommended crossover | 0.8 kHz or higher 12 dB/oct.min |
| Voice coil diameter | 72 mm (2.85 in.) |
| Diaphragm | Sandwich Polyester |
| Voice coil material | Aluminium |
| Voice coil former | Kapton |
| Flux density | 2.1 T |
