The CLUB XS range of compact, and portable mixing consoles. Offering all the features and specifications required from mixing consoles at this level, at a great price point. With features such as 3 band EQ, built-in channel compression, DSP effects and a hugely versatile MP3/USB/SD card playback and recording system, with Bluetooth playback facility included.
CLUB XS 10

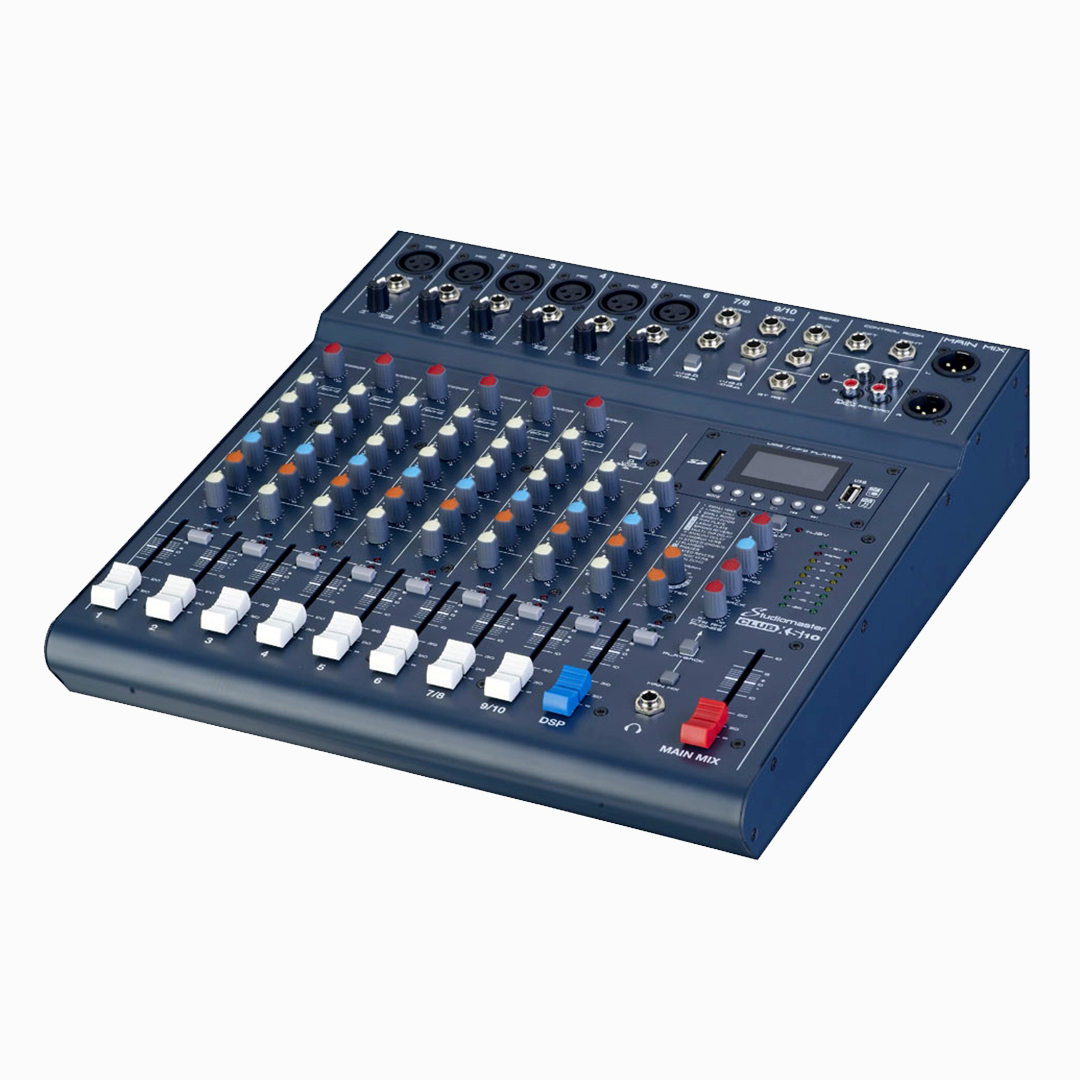

Introducing the Studiomaster CLUB XS 10 – a compact 10 input – 6 mic / 2 stereo analogue mixer console with 16 DSP effects. Additional, built in USB record / playback and bluetooth playback for perfect live mixing.
|Dimensions||33.9 × 7.0 × 35.9 cm|
S P E C I F I C A T I O N S
|Mic Gain Range||6dB to 50dB|
|Line Gain Range||10dB to 34dB|
|Frequency Responce||10Hz – 20kHz (+1/-3dB)|
|THD Mic Channel||<0.1%|
|Signal to Noise Ratio||80dB|
|Output Levels||Max +26dB (Bal), +20dB (unBal)|
|EQ||Hi 12kHz, Mid 2.5kHz, Lo 45Hz|
|USB/SD||MP3 Audio playback|
|Record||To USB drive or SD card (128kbps mono)|
|DSP Effects||16 DSP effects|
|Power Requirements||100V – 240V ~|
|Dimension W*H*D||339 x 70 x 359 (mm)|
Studiomaster is a British manufacturer of mixing consoles, power amplifiers, speaker cabinets and other professional audio equipment. Studiomaster was established in the 1970s and the brand name is now under the umbrella of Studioking Limited based in the UK.
