The D71CT is 1.4” high frequency compression driver, which features a cotton composite dome and high damped vented suspension, providing high output with very low distortion and very good response from 700 to 18000 Hz. This new dome material provides excellent vocal reproduction with very warm and clean sounding. The voice coil assembly is easily fielded replaceable without soldering. The D71CT driver offers all the benefits of new line of OBERTON drivers at reduced cost and weight.
OBERTONFerrite

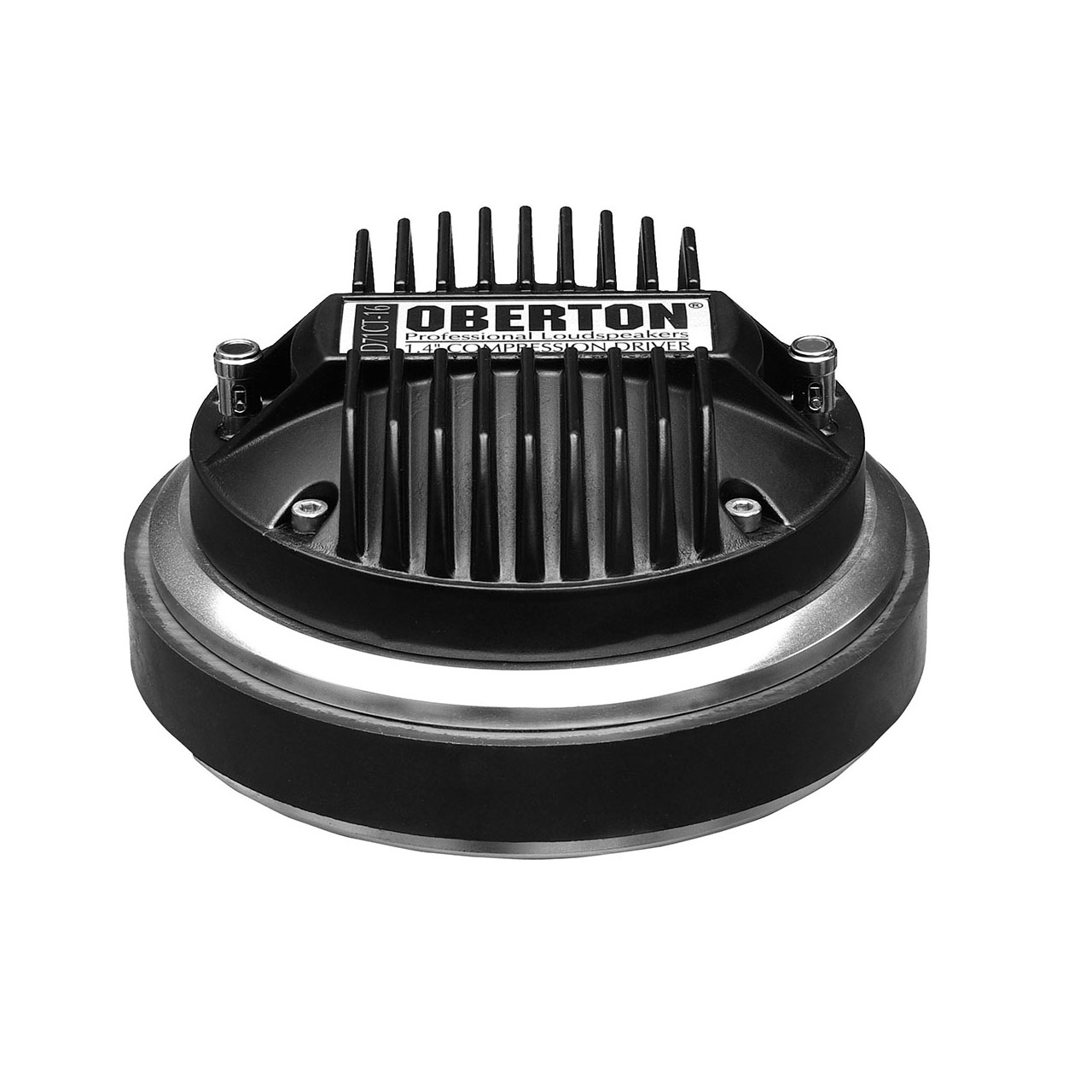

OBERTON D71CT
1.4” High Frequency Compression Driver, 2.85” voice coil, 100 W, 108.5 dB, 8/16 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
100W |
| Tweeter Diameter |
1.4" |
| Magnetic Material |
Ferrite |
Description
KEY FEATURES
- Throat diameter: 1.4″/36 inch/mm
- Impedance: 8 / 16 Ohm
- Power Capacity: 100 W
- Program Power Capacity: 200 W
- Frequency Range: 500 Hz – 18 kHz
S P E C I F I C A T I O N S
| Throat diameter | 36 mm (1.4 in.) |
|---|---|
| Nominal impedance | 8 / 16 Ohms |
| Minimum impedance | 8.4 / 11.6 Ohms |
| DC resistance | 6.79 / 10 Ohms |
| Power capacity | (1-20 kHz) 100 W |
| Program Power Capacity | (1-20 kHz) 200 W |
| Sensitivity | (1 kHz – 10 kHz) 108.5 dB/W/m |
| Frequency Range | 500Hz-18 kHz |
|---|---|
| Recommended crossover | 1 kHz or higher 12 dB/oct.min |
| Voice coil diameter | 72 mm (2.85 in.) |
| Diaphragm | Cotton composite |
| Voice coil material | CCAW |
| Voice coil former | Kapton |
| Flux density | 1.6 T |
