ISMA150D

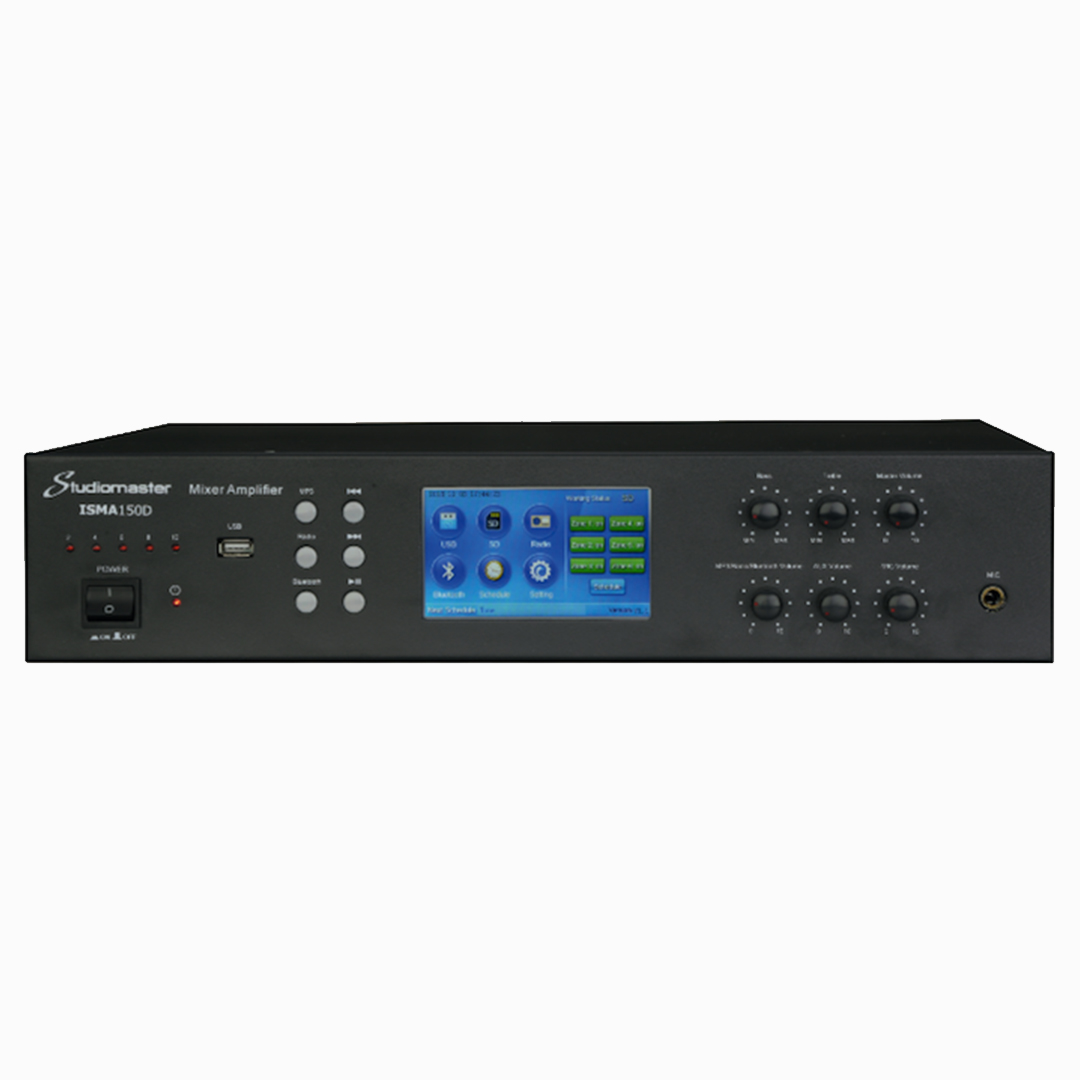

Introducing the Studiomaster ISMA150D – a 150W 100V line 2in/6 out mixer amplifier with DSP – with 150W rms output power.
| Dimensions | 41.8 × 33.8 × 8.8 cm |
|---|---|
| Brand |
Studiomaster |
| Condition |
New |
| Power Output |
150W |
Description
KEY FEATURES
- 1 mic, 1 line 6 zone 150W 70/100V line output
- Selectable output zones or single 150V output
- Programmable media player with a 4.3” TFT LCD touch screen
- USB mp3 media playback
- Built-in FM tuner
- Built-in Bluetooth receiver module
- Line output
- Independent input level controls
- 2 band EQ
- Master volume
- Weekly programmable schedule set with more than 100 daily programmable schedule points.
- Control with schedule or with manual operation
- Mic input with priority muting
- Compact 2u design
S P E C I F I C A T I O N S
| Rated Output Power | 150W |
|---|---|
| Speaker Outputs | 70V/100V line |
| AUX Output | 100Ω，1V ( 0dBV ) |
| Mic Input | 600Ω;8mV (±10%) |
| Line Input | 10kΩ, 300mV (±10%) |
| Mic Frequency Response | 40Hz-16kH(z ±3dB) |
| Line Frequency Response | 50Hz-20kH(z ±3dB) |
| Harmonic Distortion | < 0.5%(1kHz , 1/3 rated power) |
| SNR MIC | 70dB |
|---|---|
| SNR LINE | 80dB |
| EQ Bass | ±10dB (100Hz) |
| EQ Treble | ±10dB (10kHz) |
| Protection | AC fuse, DC output, overload |
| Power Supply | AC220-240V/50-60Hz |
| Power Consumption | 220W |
| Size (LxWxH) | 418x338x88mm |
Reviews (0)
About Studiomaster
Studiomaster is a British manufacturer of mixing consoles, power amplifiers, speaker cabinets and other professional audio equipment. Studiomaster was established in the 1970s and the brand name is now under the umbrella of Studioking Limited based in the UK.
