The ND72CT is powerful 1.4” neodymium high frequency compression driver which features a cotton composite dome with high damped vented suspension, providing high output with very low distortion and very good response from 500 to 18000 Hz. This new dome material provides excellent vocal reproduction with very warm and clean sounding. The voice coil assembly is easily fielded replaceable without soldering. It is designed for a wide variety of applications in high quality, high power professional reinforcement systems and stage monitors.
OBERTONNeodymium

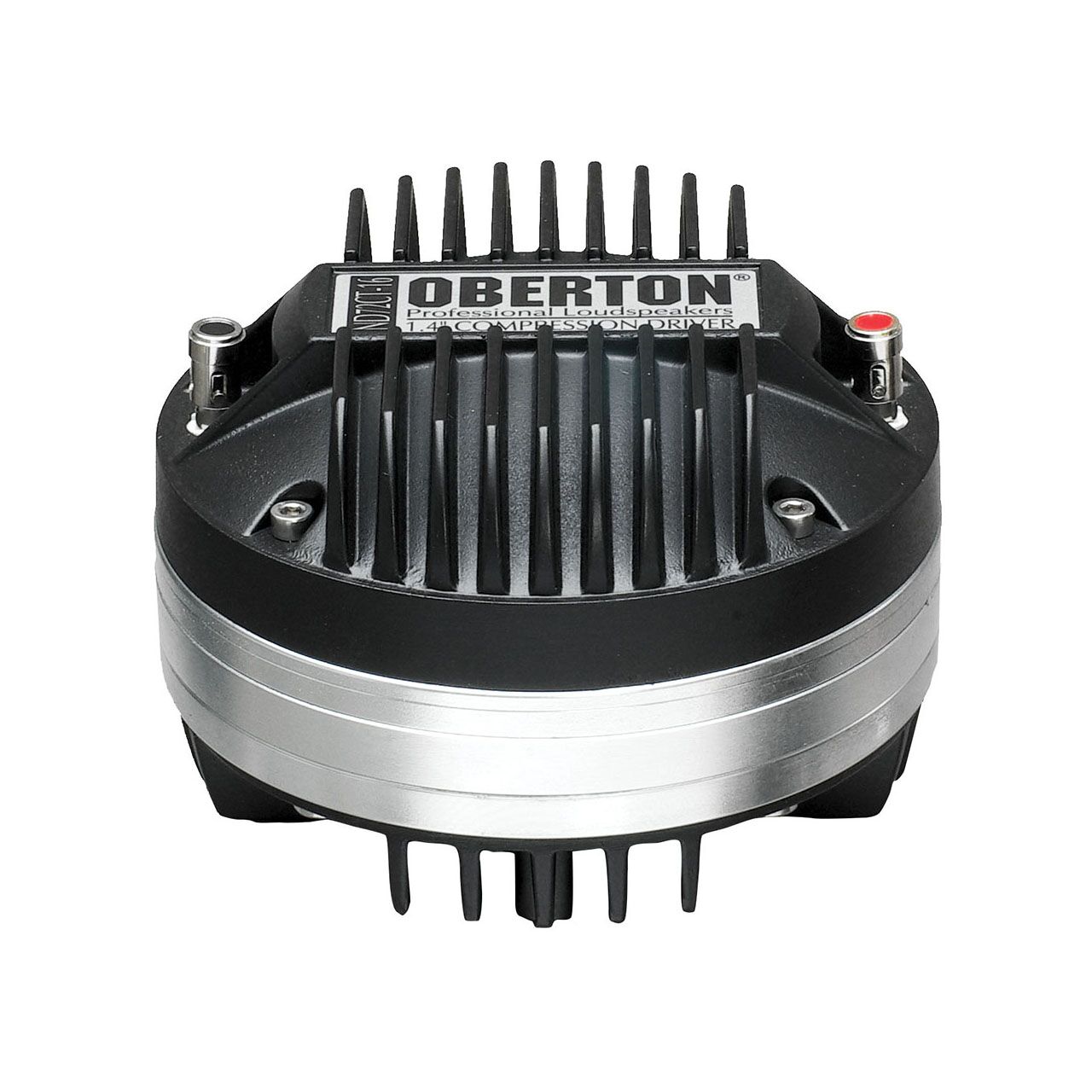

OBERTON ND72CT
1.4” High Frequency Compression Driver, 2.85” voice coil, 100 W, 109 dB, 8/16 Ohm
| Brand |
OBERTON |
|---|---|
| Condition |
New |
| Power |
100W |
| Tweeter Diameter |
1.4" |
| Magnetic Material |
Neodymium |
Description
KEY FEATURES
- Throat diameter: 1.4″/36 inch/mm
- Impedance: 8 / 16 Ohm
- Power Capacity: 100 W
- Program Power Capacity: 200 W
- Frequency Range: 500 Hz – 18 kHz
S P E C I F I C A T I O N S
| Throat diameter | 36 mm (1.4 in.) |
|---|---|
| Nominal impedance | 8 / 16 Ohms |
| Minimum impedance | 8.41 / 11.7 Ohms |
| DC resistance | 6.79 / 10 Ohms |
| Power capacity | (1-20 kHz) 100 W |
| Program Power Capacity | (1-20 kHz) 200 W |
| Sensitivity | (1 kHz – 10 kHz) 109 dB/W/m |
| Frequency Range | 500Hz-18 kHz |
|---|---|
| Recommended crossover | 1 kHz or higher 12 dB/oct.min |
| Voice coil diameter | 72 mm (2.85 in.) |
| Diaphragm | Cotton Composite |
| Voice coil material | Copper Clad Aluminium Wire |
| Voice coil former | Kapton |
| Flux density | 2.1 T |
