The new flagship to the Studiomaster speaker cabinet range. The PHASE series comprise 12” and 15” three way coaxial active cabinets, with a 3 x 8” three way active cabinet, 18” active sub bass and a 12” active and complimenting 12” passive monitor.
PHASE18SA

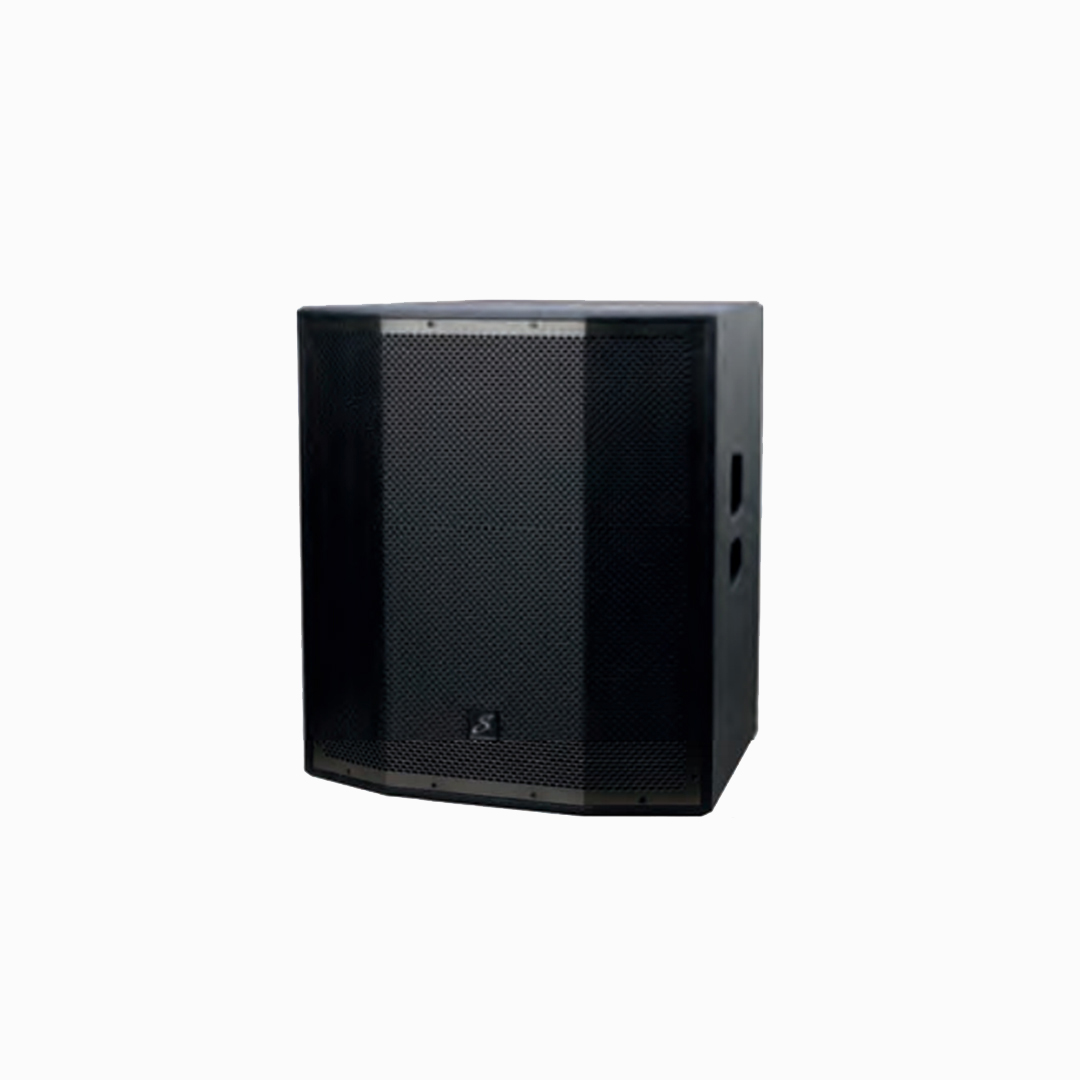

Introducing the Studiomaster PHASE18SA, a 18″ active sub woofer cabinet with output up to 900W rms power, tough steel grilles and DSP control for EQ, delay, crossover, limiter, volume.
| Weight | 49.5 kg |
|---|---|
| Dimensions | 65 × 71.9 × 67.2 cm |
| Brand |
Studiomaster |
| Condition |
New |
| Active or Passive |
Active |
| Power Output |
900W |
| Speaker Diameter |
18" |
Description
Studiomaster PHASE speaker cabinet series
KEY FEATURES
- 3 way coaxial design
- Class D powered
- High SPL & power ratings
- Multiple M10 flying points
- Built in DSP processor
- DSP control for EQ, delay, crossover, limiter, volume
- 15mm internally braced plywood
- Tough steel grilles
- 35mm top-hat
S P E C I F I C A T I O N S
| MAX SPL | 128dB |
|---|---|
| AMP PEAK | 3600W |
| AMP PGM | 1800W |
| AMP RMS | 900W |
| WEIGHT | 49.5kg |
| Cabinet type | active sub woofer |
| Frequency response | 35Hz – 100kHz |
| Input sensitivity | 0dBu |
|---|---|
| Coverage (h x v) | – |
| LF Driver | 18” |
| MF/HF Driver | – |
| DSP configurable | Yes |
| Connection | XLR/JACK input, 2x XLR output |
| Dimensions (wxhxd) | 650 x 719 x 672mm |
Reviews (0)
About Studiomaster
Studiomaster is a British manufacturer of mixing consoles, power amplifiers, speaker cabinets and other professional audio equipment. Studiomaster was established in the 1970s and the brand name is now under the umbrella of Studioking Limited based in the UK.
