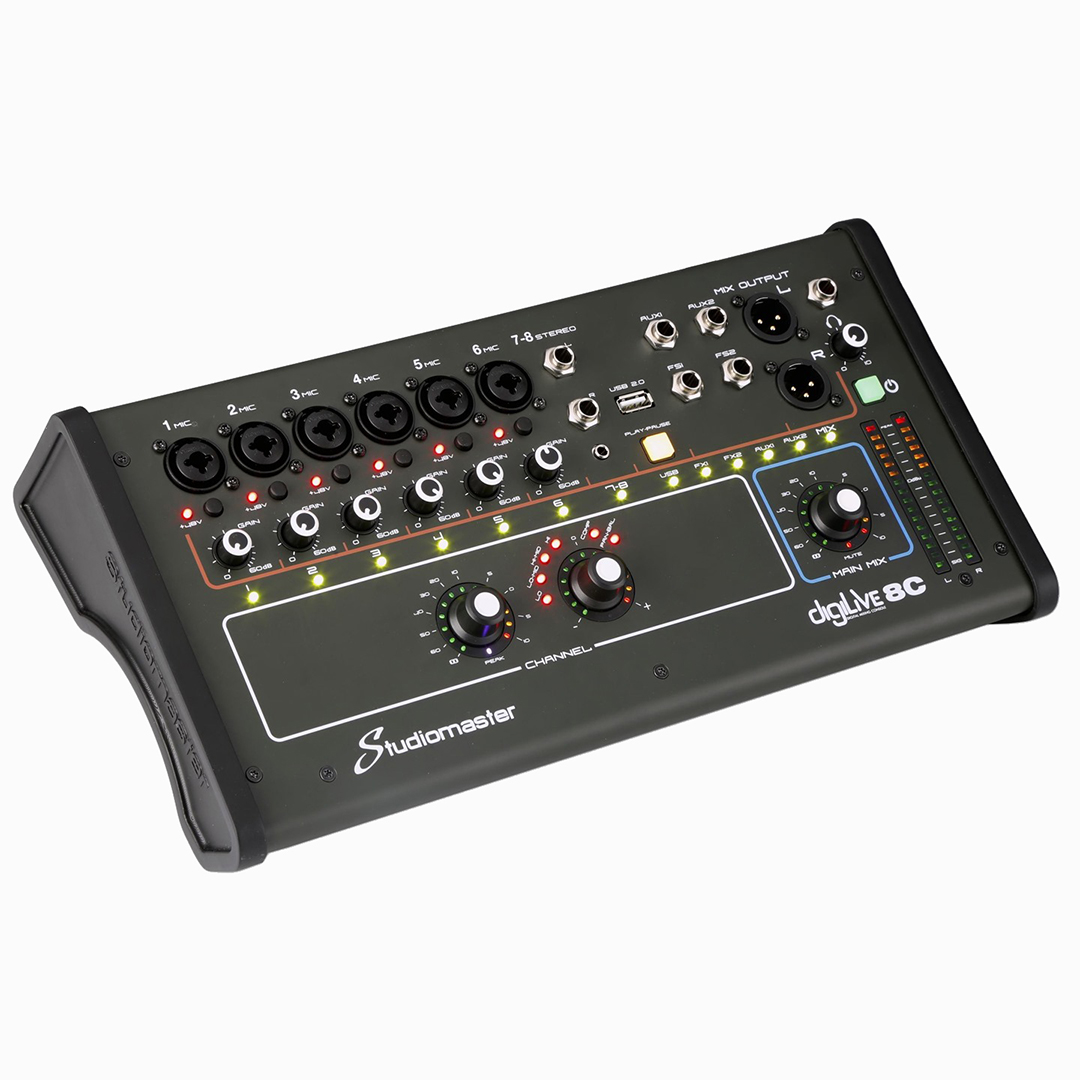

DIGILIVE 8C
Introducing the Studiomaster DIGILIVE 8C mixer – 8 input digital mixing console with unique control interface allowing your mix to always be achieved, even if your Wi-Fi fails – everything you need for perfect live mixing. Digilive is the result of many years of R&D combining Studiomaster’s experience in signal processing with the latest technologies to give you total control over your sound.
| Weight | 8 kg |
|---|---|
| Dimensions | 22 × 9 × 18 cm |
| Brand |
Studiomaster |
| Condition |
New |
Description
KEY FEATURES
- 8 input, 6 Mic, 1 Stereo
- Connect with any device with Wi-Fi or LAN
- PHONE – TABLET – LAPTOP – multi platform
- 4 effect busses
- Assignable footswitch input
- Complete control from the front panel
- analogue feel to operate
- Balanced input and output sockets
- Ultra compact
- Professional features throughout
Simple to use interface with 3 operation modes
FULL – BASIC – LOCK
(lock mode only allows fader/media operation)
4 band parametric EQ HPF and intuitive operation
SAVE EQ TO PRESETS
(basic mode converts EQ to 4 band fixed)
Analogue inspired bus/effect routing
Double tap the faders to get fast to zero
EASY TO VIEW BUS ROUTING
(you can even choose pre or post fade)
High quality compression and gate dynamics
Save presets to your library for easy recall
BASIC MODE gives simple one control
(easy to understand graphical display)
Media player with simultaneous recording
Play multiple formats from MP3 to WAV
ONE TOUCH OPERATION TO PLAY
(records L/R main mix in stereo WAV)
31 band graphic on L/R main mix outputs
Easy to use and save to your library
FULL CONTROL OVER YOUR MIX
(double tap the control to centre the fader)
S P E C I F I C A T I O N S
| Input | 8 analogue input |
|---|---|
| MIC Input | 6 MIC/LINE COMBO XLR/JACK |
| LINE Input | 1 STEREO Jacks/3.5mm mini Jack |
| Master output | 2 Left/Right balanced XLR |
| Internal busses | 4 stereo FX / 2 mono AUX / stereo PFL / Main Mix |
| Stereo Monitor | 2 TRS Jack output |
| Headphone | 1 TRS Jack output |
| Control Interface | Full mix from 3 rotary encoders |
| Remote control | Cross platform – Any device with Wi-Fi / Lan and web browser |
| Sample Frequency | 48 KHz |
|---|---|
| AD/DA | 48KHz, 24-bit |
| DSP | 40-bit float point, SHARC processor |
| Effects | 4 – programmable DELAY x2 and REVERB x2 |
| USB Interface | 2 for playback/recording, scene storage and system updates |
| Network | yes via WIFI external module or RJ45 LAN connection |
| Power | 90-240V ~ 50/60Hz power supply 12VDC output |
| Weight | 8kg |
Reviews (0)
About Studiomaster
Studiomaster is a British manufacturer of mixing consoles, power amplifiers, speaker cabinets and other professional audio equipment. Studiomaster was established in the 1970s and the brand name is now under the umbrella of Studioking Limited based in the UK.
